Zoom Stereo Microscope
We have 4 stands and binocular/trinocular head, the models are: STM-3035B1, STM-3035T1, STM-3035B2, STM-3035T2, STM-3035B3, STM-3035T3, STM-3035B4, STM-3035T4.
“B” means binocular, “T” means trinocular.
“1” means the stand with round base, without illumination.
“2” means the stand with square base, without illumination
“3” means the stand with round base, with transmitted and Incident illumination
“4” means the stand with square base, with transmitted and Incident illumination
STM-3035
series Zoom Stereo Microscope offer sharp 3 D images with very competitive
price. Optional auxiliary objectives,
light source, stands and other accessories can fulfill different requirements.
|
Item |
Specification |
STM-3035B3 |

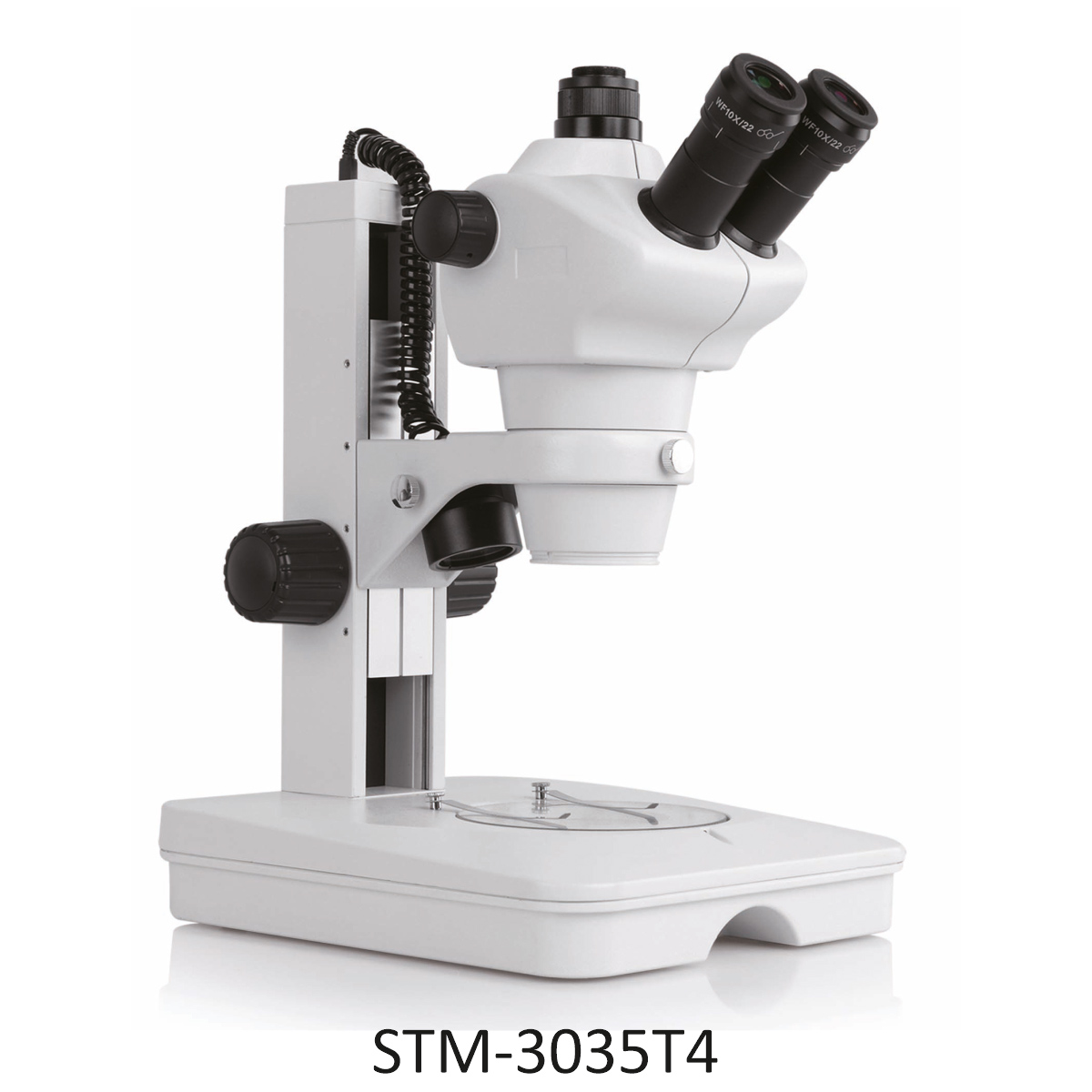

STM-3035T4 |
|
Viewing Head |
Binocular Head, Inclined at 45°, Interpupillary Distance 52-75mm |
Standard |
Optional |
|
Trinocular Head, Inclined at 45°, Interpupillary Distance 52-75mm, 30:70 light distribution |
Optional |
Standard |
|
|
Eyepiece |
Extra wide field eyepiece EW10×/22mm |
Standard |
Standard |
|
WF15×/16mm |
|
|
|
|
WF20×/12.5mm |
|
|
|
|
Zoom Objective |
0.8×-5× |
Standard |
Standard |
|
Zoom Ratio |
6.3:1 |
Standard |
Standard |
|
Working Distance |
115mm |
Standard |
Standard |
|
Auxiliary objective |
2×, WD 45mm |
Optional |
Optional |
|
0.5×, WD 210mm |
|
|
|
|
Stage Plate |
Frosted Glass Plate, Diameter 100mm |
Standard |
Standard |
|
White&Black round plate, Diameter 100mm |
Standard |
Standard |
|
|
Focusing Unit |
Coarse Focus Knob with tension adjustable, Moving range 100mm |
Standard |
Standard |
|
Illumination |
Incident Illumination 100V-240V/ LED |
Standard |
Standard |
|
Transmitted Illumination 100V-240V/ LED |
Standard |
Standard |
|
|
Attachment |
Photo Adapter (For Nikon, Canon, Olympus, Sony DSLR Cameras) |
|
Optional |
|
0.5X C-mount Adapter |
|
Standard |
|
|
Package |
1pc/carton, 36.5cm*31cm*52cm, 8.5kg |
Standard |
Standard |
STM-3035 series stereo zoom microscope is of great value in a variety of applications such as circuit board repair, circuit board inspection, surface mount technology work, electronics inspection, coin collecting, gemology and gemstone setting, engraving, repair and inspection of small parts.
