Zoom Stereo Microscope
Stereo microscopes are also known as low magnification and dissecting microscopes. STM-3020 Stereo Zoom Microscope on a post stand offers upright, un-reversed 3D images that very clear throughout the zoom range. Optional eyepieces and auxiliary objectives expand magnification range and working distances.
STM-3020 is a very popular zoom stereo microscope. Optional cold light and ring light can be chosen for this microscope. You can also choose trinocular head to add digital camera with the appropriate camera adapter. In summary STM-3020 gives many range of magnifications, working distances, photo options, accessories and is very convenient to use – no wonder it is popular!|
Item |
Specification |
STM- 3020B |
STM- 3020T |
STM- 3020BD |
|
|
Viewing Head |
Binocular head, inclined at 45°, Interpupilary Distance 55-75mm |
Standard |
|
|
|
|
Binocular head, inclined at 60°, Interpupilary Distance 55-75mm |
Optional |
Optional |
|
||
|

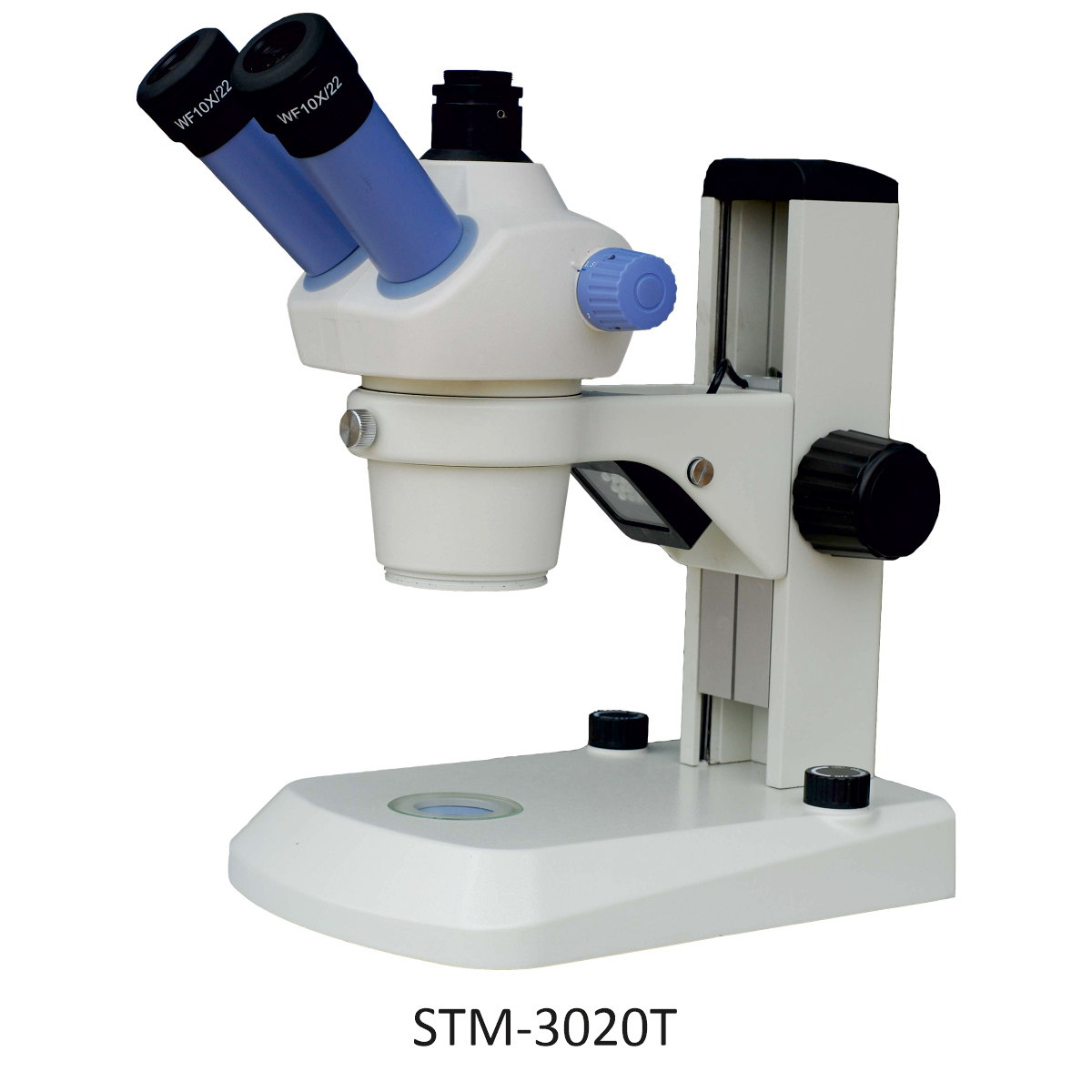

Trinocular head, inclined at 45°, Interpupilary Distance, 55-75mm |
|
Standard |
|
||
|

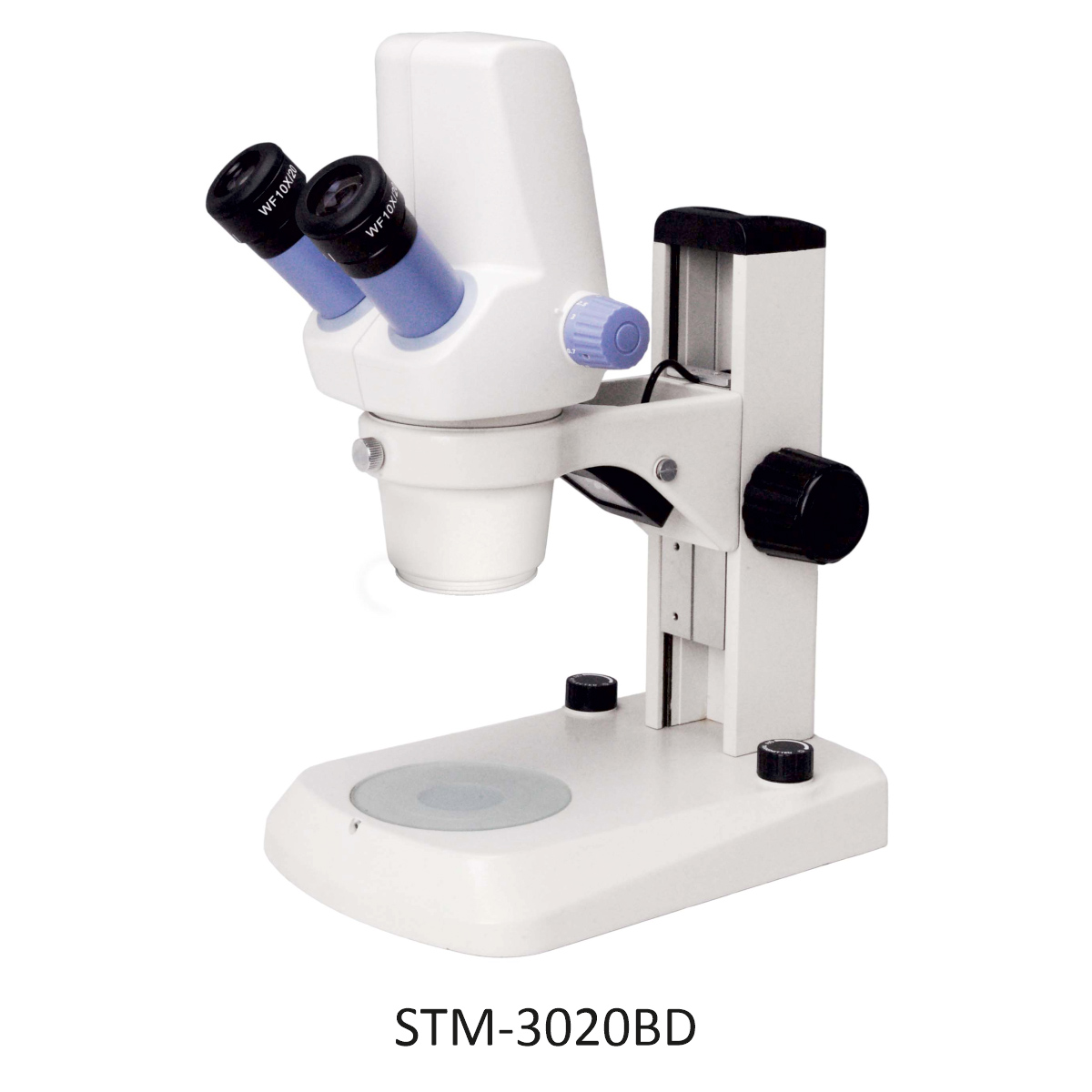

Binocular head with 1.3MP digital camera, inclined at 45°, Interpupilary Distance 55-75mm, ScopeImage 9.0 software |
|
|
Standard |
||
|
Eyepiece |
Wide field eyepiece 10×/ 20mm |
Standard |
Standard |
Standard |
|
|
Wide field eyepiece 15×/ 16mm |
Optional |
Optional |
Optional |
||
|
Wide field eyepiece 20×/ 12mm |
Optional |
Optional |
Optional |
||
|
Wide field eyepiece 30×/8mm |
Optional |
Optional |
Optional |
||
|
WF10× Eyepiece with cross line |
Optional |
Optional |
Optional |
||
|
Objective |
Zoom objective |
0.7×～3× |
Optional |
Optional |
Optional |
|
1×～4.5× |
Standard |
Standard |
Standard |
||
|
Auxiliary objective |
2×, W.D.: 30mm |
Optional |
Optional |
Optional |
|
|
0.75×, W.D.: 120mm |
Optional |
Optional |
Optional |
||
|
0.63×, W.D.: 137mm |
Optional |
Optional |
Optional |
||
|
0.5×, W.D.: 180mm |
Optional |
Optional |
Optional |
||
|
Zoom Ratio |
1:4.3 |
Optional |
Optional |
Optional |
|
|
1:4.5 |
Standard |
Standard |
Standard |
||
|
Working Distance |
97mm |
Standard |
Standard |
Standard |
|
|
Focusing |
Coarse Focus, Focusing Range 100mm |
Standard |
Standard |
Standard |
|
|
Illumination |
Incident Illumination 100V-240V/ LED |
Standard |
Standard |
Standard |
|
|
Transmitted Illumination 100V-240V/ LED |
Standard |
Standard |
Standard |
||
|
Attachment |
Photo Attachment (Used for connecting Nikon or Canon DSLR camera to the microscope) |
Optional |
Optional |
Optional |
|
|
Video Attachment (0.5× C-mount) |
Standard |
Standard |
Standard |
||
|
Package |
1pc/carton, 36.5cm*31cm*52cm, 6kg |
Standard |
Standard |
Standard |
|
The microscope can be used for circuit board repair and inspection, SMT work, electronics inspection, coin collecting, gemology and gemstone setting, engraving, repair and inspection of small parts.
