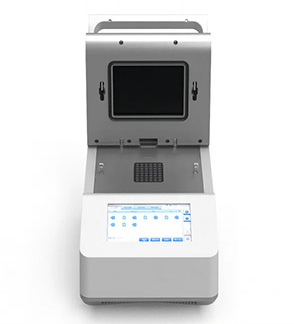

Real-time PCR System
STN-48R Automatic PCR Analysis System is specially designed for small and medium-sized laboratories, mobile laboratories, field testing professionals and so on, to support absolute quantitative analysis, relative quantitative analysis, isothermal amplification, dissociation curve analysis, genotyping, and endpoint fluorescence analysis, etc. With its excellent performance and portability, it can make your experiments more easy-to-use, accurate and efficient
Rapid heating up and cooling down: maximum heating rate of 8.0℃/s; maximum cooling rate of 6.2℃/s.
High-brightness, maintenance-free LED lightsource with 4 (Gentier 48E)/2 (Gentier 48R) fluorescence detection channels, allowing fluorescence scanning of all wells completed in just 2s.
With a 7-inch full-color touchscreen, the device can operate independently from the computer and store over 1,000 experimental data.
Immediate analysis of experimental data on the instrument, without the need for a computer; direct printing function by connecting to a thermal printer.
Automatic recovery of the experiment when the power is on again after cutting off, without waiting for the power-on of the computer or software control.
Small in size, light in weight, easy to move; and no calibration needed after moving.
|
Model |
STN-48R |
|
Through Out |
48 |
|
Fluorescence Channels |
2 |
|
Compatible Fluorophores |
Channel 1: FAM, SYBR Green I, etc. Channel 2: VIC, HEX, TET, JOE, etc.
|
|
Light Source |
High-brightness, long-life and maintenance-free LED light source |
|
Detector |
Photodiodes |
|
Fluorescence Scanning Time |
48-well 2-color detection completed within 2s |
|
Heating Rate |
Maximum Heating Ramp rate ≥8.0°C/s; Average Heating Ramp rate ≥6.2°C/s |
|
Cooling Rate |
Maximum Cooling Ramp rate ≥6.2°C/s; Average Heating Ramp rate ≥4.5°C/s |
|
Temperature Accuracy |
≤0.1°C |
|
Special Temperature Setting function |
Support Thermal gradients PCR, Long PCR, Touch Down PCR |
|
Suitable Consumables |
0.2mL clear non-skirt 48-well plates, 8 tube strips single tubes, etc. |
|
Sample Testing Linearity and Repeatability |
Linear Correlation: /r/ ≥0.999 Repeatability: cycle threshold (Ct) value CV ≤0.5% |
|
Software Analysis |
Qualitative Analysis, absolute quantitative analysis, relative quantitative analysis, end point fluorescence analysis, melting curve analysis, and genotyping analysis, etc |
|
Control Method |
Stand-alone Operation: 7 inch touchscreen control; Cloud-enabled: PC software control via direct connection or LAN (local area network) Up to 10 devices controlled by one PC |
|
Power Failure Protection |
Automatic Recovery of the experiment and other functions when the power is on again after cutting off, without waiting for the power-on of the computer or software control |
|
Data Storage and Transmission |
A single machine can store more the 1,000 experimental data files, which can be imported and exported via USB disks |
|
Stand-Alone Analysis Results |
No need for an extra computer: experiment data analysis enabled within the instrument; Direct Printing function (optional) to output the sample amplification curve and CT value, simply by connecting to the compatible thermal printer |
|
Reporting Function |
Build-in experiment report templates for a variety of industries; Fully open universal reporting of which the contents and formats can be customized |
|
Operating System for PC |
Windows XP Pro or higher |
|
Power Supply and Power Consumption |
AC 100-240V, 50-60Hz, 600VA |
|
Weight |
11kg (net) |
|
Instrument Dimension |
260*400x260mm (WxLxH) |
