Metallurgical Microscope

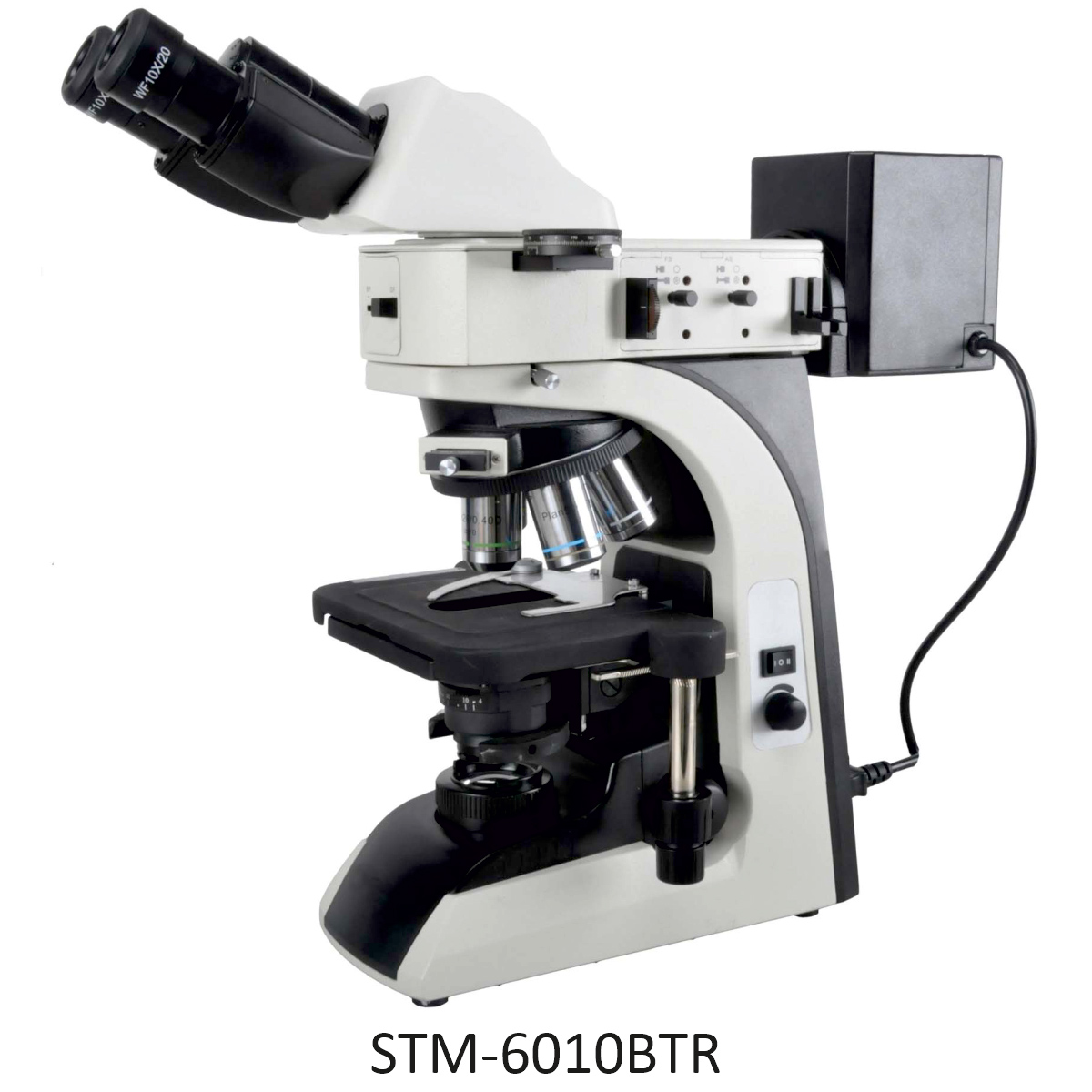

STM-6010 Series Metallurgical Microscopes are high level metallurgical microscopes with Reflected / Transmitted & Reflected illumination system, they not only can be used to identify and analyze a variety of metals, alloys, non-metallic material and the organizational structure and integrated circuits, but also can be applied to micro-particles, wires, fibers, surface coating such as some of the surface conditions. Digital cameras can be added to the trinocular tube to take images and make image analysis
|
Item |
Specification |
STM-6010BR |
STM-6010BTR |
|
Optical System |
Infinite Optical System |
Standard |
Standard |
|
Viewing Head |
Siedentopf binocular viewing head, inclined at 30°, interpupillary distance 48-75mm |
Standard |
Standard |
|
Siedentopf trinocular viewing head, inclined at 30°, interpupillary distance 48-75mm |
Optional |
Optional |
|
|
Extra Wide Field Eyepiece |
WF10×/22mm |
Standard |
Standard |
|
WF10×/22mm Eyepiece with scale of cross hair |
Standard |
Standard |
|
|
EW15×/16mm |
Optional |
Optional |
|
|
EW20×/12mm |
Optional |
Optional |
|
|
Infinite Plan Achromatic Objective |
5×/0.12/∞/- (BF&DF) LWD 10mm |
Standard |
Standard |
|
10×/0.25/∞/- (BF&DF) LWD 10mm |
Standard |
Standard |
|
|
20×/0.40/∞/0 (BF&DF) LWD 5.0mm |
Standard |
Standard |
|
|
50×/0.75/∞/0 (BF&DF) LWD 1.3mm |
Standard |
Standard |
|
|
100×/0.90(Dry)/∞/0 (BF&DF) LWD 0.7mm |
Standard |
Standard |
|
|
40×/0.65/∞/0.17 (BF) WD 0.6mm |
|
Standard |
|
|
100×/1.25/∞/0.17 (BF) WD 0.16mm |
|
Standard |
|
|
Nosepiece |
Backward quintuple nosepiece |
Standard |
Standard |
|
Stage |
Double layer mechanical stage 216×150mm, Moving range 78×54mm |
|
Standard |
|
Double layer mechanical stage 188×148mm, Moving range 78×54mm |
Standard |
|
|
|
Focusing |
Coaxial coarse & fine adjustment, fine division 2μm, moving range 30mm |
Standard |
Standard |
|
Kohler Illumination |
Reflected 12V/50W Halogen light, Center and brightness adjustable |
Standard |
Standard |
|
Transmitted 12V/20W Halogen light, Center and brightness adjustable |
|
Standard |
|
|
Polarizer and analyzer |
Standard |
Standard |
|
|
DIC attachment |
Optional |
Optional |
|
|
Green, Gray and ground glass filter |
Standard |
Standard |
|
|
Accessories |
Specimen Presser |
Optional |
Optional |
|
Photo Adapter(Used to connect DSLR camera to the microscope) |
Optional |
Optional |
|
|
0.5× Video adapter with C-mount |
Standard |
Standard |
|
|
Stage Micrometer 0.01mm |
Standard |
Standard |
STM-6010 Series is widely used in institutes and laboratories to oSTMerve and identify the structure of various metal and alloy, it also can be widely used in electronics, chemical and instrumentation industry, oSTMerve the opaque material and transparent material, such as metal, ceramics, integrated circuits, electronic chips, printed circuit boards, LCD panels, film, powder, toner, wire, fibers, plated coatings, and other non-metallic materials and so on
