HDMI LCD Displayer
SD1080LCD is designed for BWHC and BHC4 series HDMI cameras and can be used for high definition display. It adopts Panasonic IPS LCD panel(Super TFT) to guarantee the wide view angle and high contrast. Together with BWHC and BHC4 series cameras, it could make the imaging & display solution simple, flexible and intuitive. Outstanding performance of SD1080LCD helps BWHC and BHC4 series HDMI cameras reach fast frame rate and excellent color.
|
Order Code |
Active Area(Inch) |
Video Fomat |
Resolution |
Contrast |
Color(Million) |
View Angle |
|
SD1080LCD |
11.6 |
HDMI |
1080P |
1000:1 |
16.7 |
IPS Full View |
|
Basic Performance |
|
|
LCD Panel |
Panasonic IPS LCD Screen(Super TFT) |
|
Input Video Format |
HDMI |
|
Native Resolution |
1920 x 1080 |
|
Display Type |
16:9 Ratio 11.6 Inch Active Matrix Super TFT LCD |
|
Typical Contrast Ratio |
1000:1 |
|
Colors |
16.7 Million |
|
Viewing Angle(L/R/U/D) |
IPS Full Vew |
|
Active Display Area |
258mm(W) × 145mm(H) |
|
Pixel Pitch |
0.134(W) X 0.134(H) mm |
|
Brightness |
350 cd/ sq.m ;400cd sq.m / Optional |
|
Backlight |
LED Backlight, 50000 hours |
|
Outline Parameter |
|
|
Color |
Black |
|

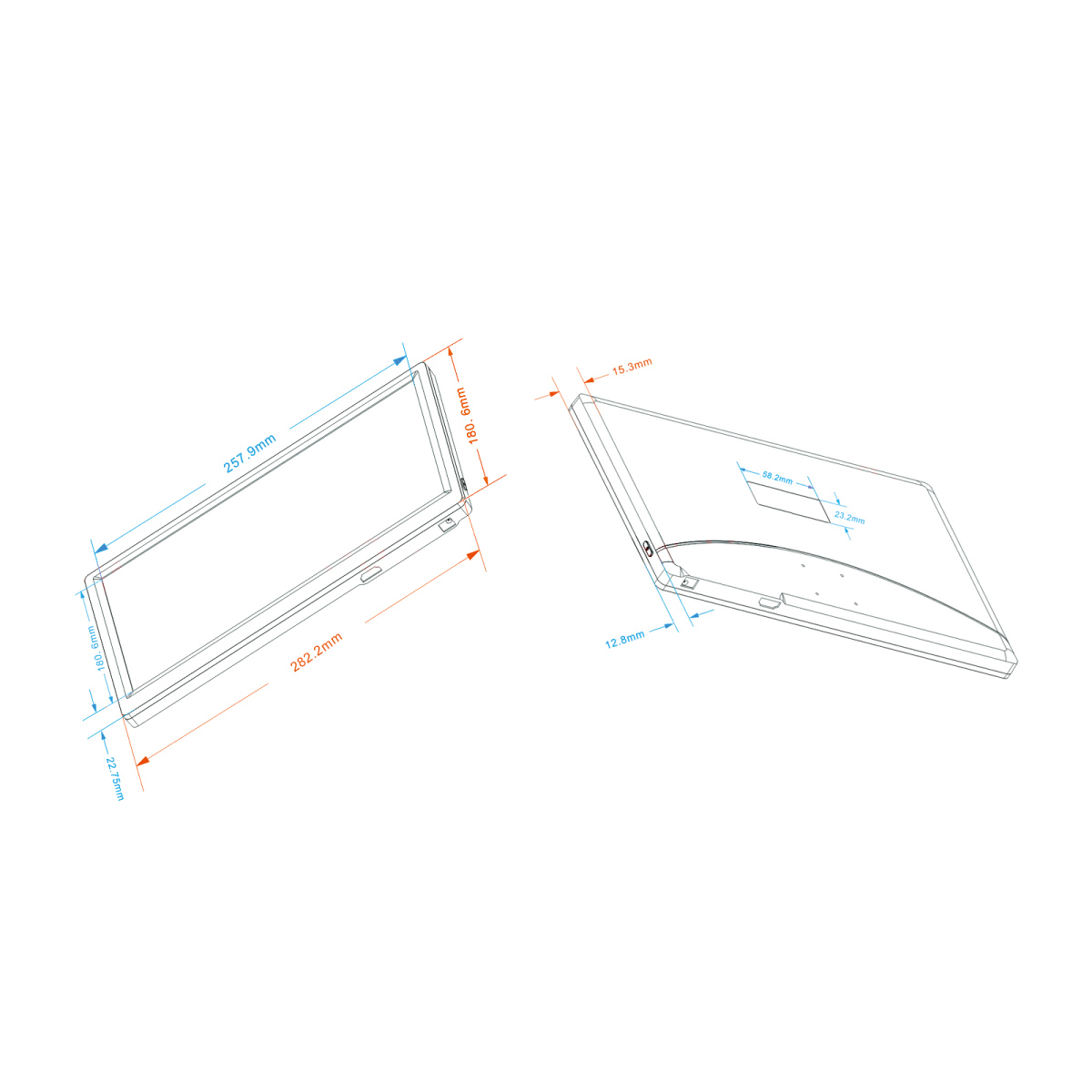

Dimension |
281(L)*179(H)*15.6(W) mm |
|
Weight |
400g |
|
Operating Environment |
|
|
Operating Temperature |
-15 Degree~55 Degree |
|
Humidity Non Condensing |
Operating:10%-90%, Storage: 5%-90% |
|
Synchronization Range |
30-80 KHz Horizontal, 55-75 Hz Vertical |
|
Power Supply |
AC110V-220V /DC12V(1A ) |
|
Power Consumption |
Max 12W |
