Economical Gloss Meter

EGM60 Series

Description
Features
Specifications
Literature

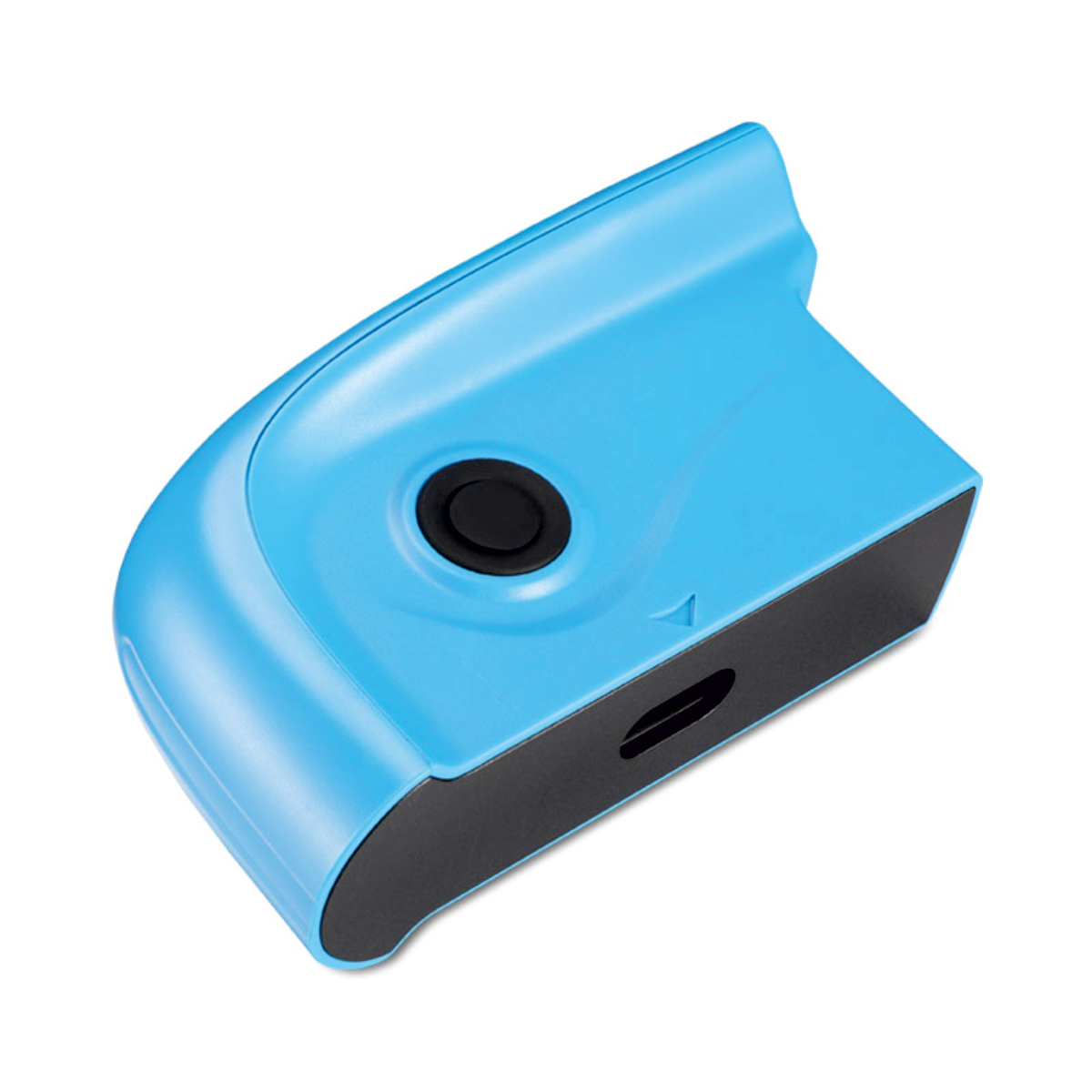

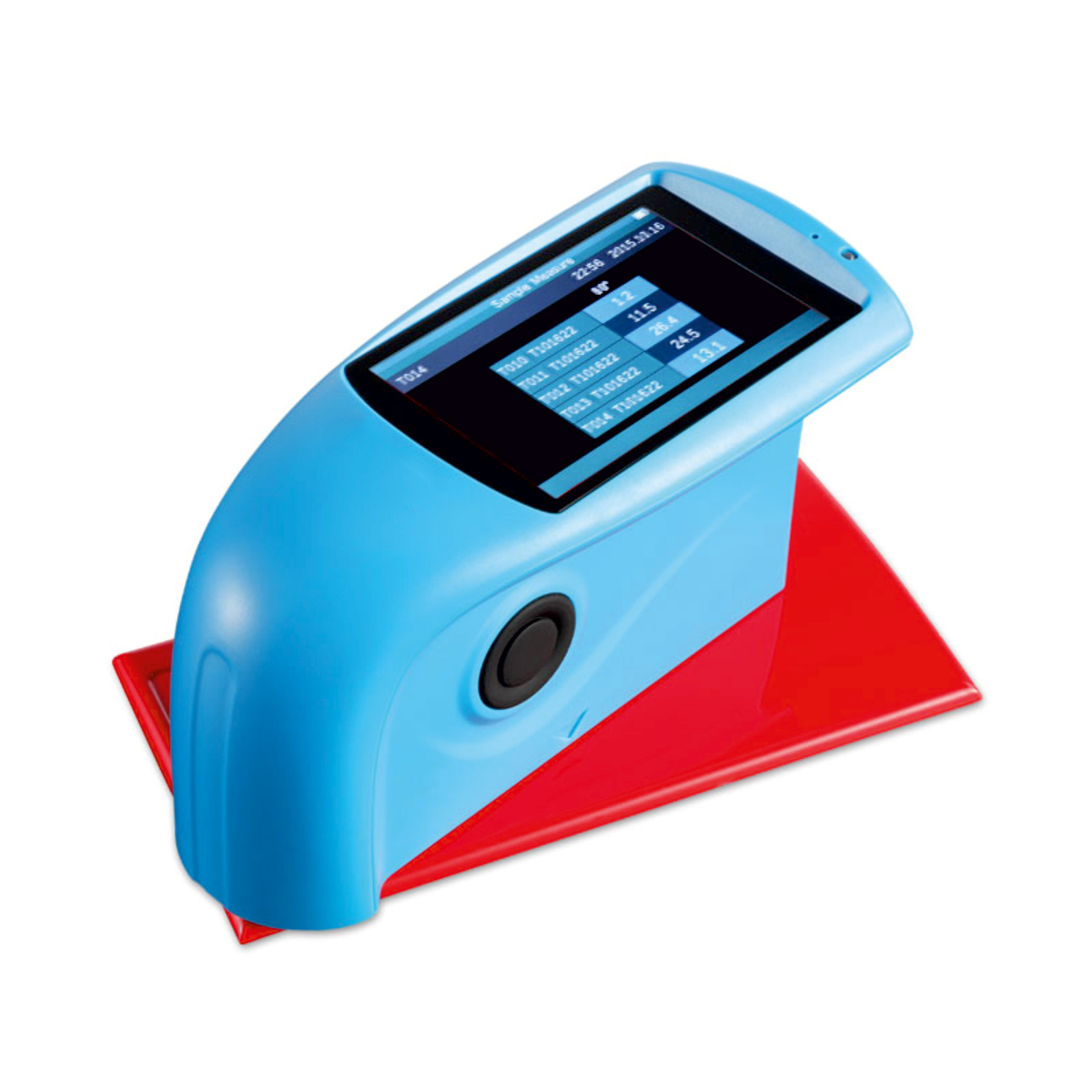

EGM60 Series gloss meter features with 60° angle, manufactured according to ISO2813. It is also compatible with international standards of ASTM D523, ASTM D2457. EGM60S conforms corresponding with CIE 1931(2°) under CIE C light source.EGM60 Series gloss meter is widely used to test glossiness in these industries, such as automobile, paint, ink, stoving varnish, coating, wood products marble, granite, vitrified polished le, pottery brick and porcelain, plastic, paper hardware industries, etc.

60° angle for semi gloss
Concise appearance, feel good
Display 5 sets of measurement data, good for comparison
Built-in lithium ion rechargeable battery
Basic model measurement can meet basic glossiness testing requirements
Connect to PC, more extend functions
One button for all angles measurement at the same location
Comply with international standards
Stable performance, easy to read data.

Model	EGM60	EGM60S
Measuring Angle	60° Comply with standard ISO 2813, ASTM D 523, ASTM D 2457	60° Comply with standard ISO 2813, ASTM D 523, ASTM D 2457
Measuring Area(mm)	9x15	9x15
Measuring Range	0~300GU	0~200GU
Division Value	0.1GU	1GU
Measurement Range Repeatability Reproducibility	0-10GU 10-100GU 100-300GU ± 0.1GU ± 0.2GU ± 0.2%GU ± 0.2GU ± 0.5GU ± 0.5%GU	0-200GU ±1GU ±1GU
Chromacity Corresponding	Corresponding with CIE 1931(2°) under CIE C light source	Corresponding with CIE 1931(2°) under CIE C light source
Errors	±1.5 , ± 1.5%	±1.5 , ± 1.5%
Measuring Time	0.5s	0.5s
Dimension	LWH : 160mm75mm90mm	LWH : 160mm75mm90mm
Weight	350g	350g
Battery	3200mAh Li-ion Battery, >10000 mes (within 8 hours)	3200mAh Li-ion Battery, >10000 mes (within 8 hours)
Display	TFT 3.5 inch	TFT 3.5 inch
Interface	USB/RS-232	USB/RS-232
Storage	Basic mode: 1000	Basic mode: 1000
Software	GQC6 Quality Control Software with QC report printing functions and more extended functions.	GQC6 Quality Control Software with QC report printing functions and more extended functions.
Operation Temperature	0~40°C (32~104°F)	0~40°C (32~104°F)
Storage Temperature	-20~50°C (-4~122°F)	-20~50°C (-4~122°F)
Humidity	<85% relative humidity, no condensation	<85% relative humidity, no condensation
Standard Accessories	Power Adapter, USB cable, User Manual, GQC6 software CD (except EGM60S), Calibration Plate	Power Adapter, USB cable, User Manual, GQC6 software CD (except EGM60S), Calibration Plate
Optional Accessories	Miniature Printer	Miniature Printer

EGM60 Series Brochure
