CMOS Color Microscope Digital Cameras
STC2C series cameras adopt ultra-high performance CMOS sensor as the image-capture device. USB2.0 is used as the data transfer interface.
STC2C series cameras’ hardware resolutions ranges from 0.35M to 14M and come with the zinc aluminum alloy compact housing. STC2C come with advanced video & image processing application ImageView; Providing Windows/Linux/OSX multiple platform SDK; Native C/C++, C#/VB.NET, DirectShow, Twain Control API; The STC2C can be widely used in bright field light environment and microscope image capture and analysis with moderate frame rate.
|
Order Code |
Sensor & Size(mm) |
Pixel(μm) |
G Responsivity Dynamic range SNRmax |
FPS/Resolution |
Binning |
Exposure |
|
STC2C-1400C |
14M/MT9F002(C) |
1.4x1.4 |
0.724v/lux-sec 65.3dB 35.5dB |
1.8@4096x3288 |
1x1, 2x2, 4x4 |
0.4ms~2000ms |
|
STC2C-1000C |
10M/MT9J003(C) |
1.67x1.67 |
0.31v/lux-sec 65.2dB 34dB |
1.9@3584x2748 |
1x1, 2x2, 4x4 |
0.4ms~2000ms |
|
STC2C-900C |
9M/Special(C) |
1.67x1.67 |
0.31v/lux-sec 65.2dB 34dB |
1.9@3488x2616 |
1x1, 2x2, 4x4 |
0.4ms~2000ms |
|
STC2C-800C |
8M/Special(C) |
1.67x1.67 |
0.31v/lux-sec 65.2dB 34dB |
1.9@3264x2448 |
1x1, 2x2, 4x4 |
0.4ms~2000ms |
|
STC2C-500C |
5.1M/MT9P001(C) |
2.2x2.2 |
0.53 V/lux-sec 66.5dB 40.5dB |
5@2592x1944 |
1x1, 2x2, 4x4 |
0.294ms~2000ms |
|
STC2C-300C |
3.1M/MT9T001(C) |
3.2x3.2 |
1.0 V/lux-sec 61dB 43dB |
8@2048x1536 |
1x1, 2x2, 3x3 |
0.244ms~2000ms |
|
STC2C-200C |
2.0M/Special(C) |
3.2x3.2 |
1.0 V/lux-sec 61dB 43dB |
16@1600x1200 |
1x1, 2x2 |
0.128ms~2000ms |
|
STC2C-123C |
1.23M/SC1235(C) |
3.75x3.75 |
4.5V/lux-sec 74dB 38dB |
15@1280x960 |
1x1, 1x1 |
0.14ms~2000ms |
|
STC2C-130M |
1.3M/MT9M001(M) |
5.2x5.2 |
2.1 V/lux-sec 68.2dB 45dB |
20@1280x1024 |
1x1 |
0.14ms~500ms |
|
STC2C-35C |
0.35M/MT9V011(C) |
5.6x5.6 |
1.9V/lux-sec 60dB 45dB |
30@640x480 |
1x1, 2x2 |
0.111ms~192ms |
|
Other Specification for STC2C Camera |
|
|
Spectral Range |
380-650nm (with IR-cut Filter) |
|
White Balance |
ROI White Balance/ Manual Temp Tint Adjustment/NA for Monochromatic Sensor |
|
Color Technique |
Ultra-FineTM Color Engine/NA for Monochromatic Sensor |
|
Capture/Control API |
Native C/C++, C#/VB.NET, DirectShow, Twain and Labview |
|
Recording System |
Still Picture and Movie |
|
Cooling System* |
Natural |
|
Operating Environment |
|
|
Operating Temperature (in Centigrade) |
-10~ 50 |
|
Storage Temperature (in Centigrade) |
-20~ 60 |
|
Operating Humidity |
30~80%RH |
|
Storage Humidity |
10~60%RH |
|
Power Supply |
DC 5V over PC USB Port |
|
Software Environment |
|
|
Operating System |
Microsoft® Windows® XP / Vista / 7 / 8 /10 (32 & 64 bit) OSx(Mac OS X) Linux |
|
PC Requirements |
CPU: Equal to Intel Core2 2.8GHz or Higher |
|
Memory:2GB or More |
|
|
USB Port:USB2.0 High-speed Port |
|
|
Display:17” or Larger |
|
|
CD-ROM |
|
Dimension of STC2C

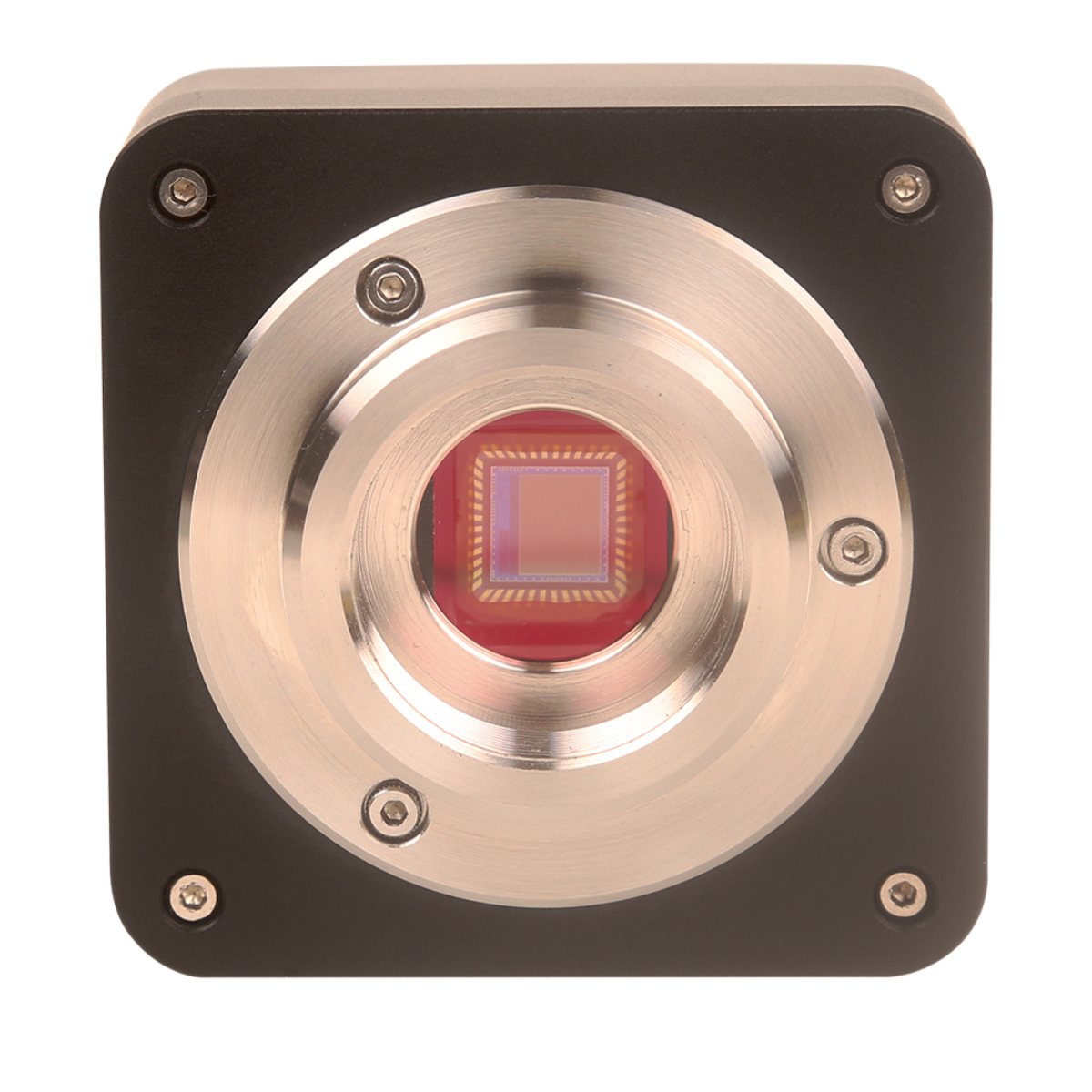

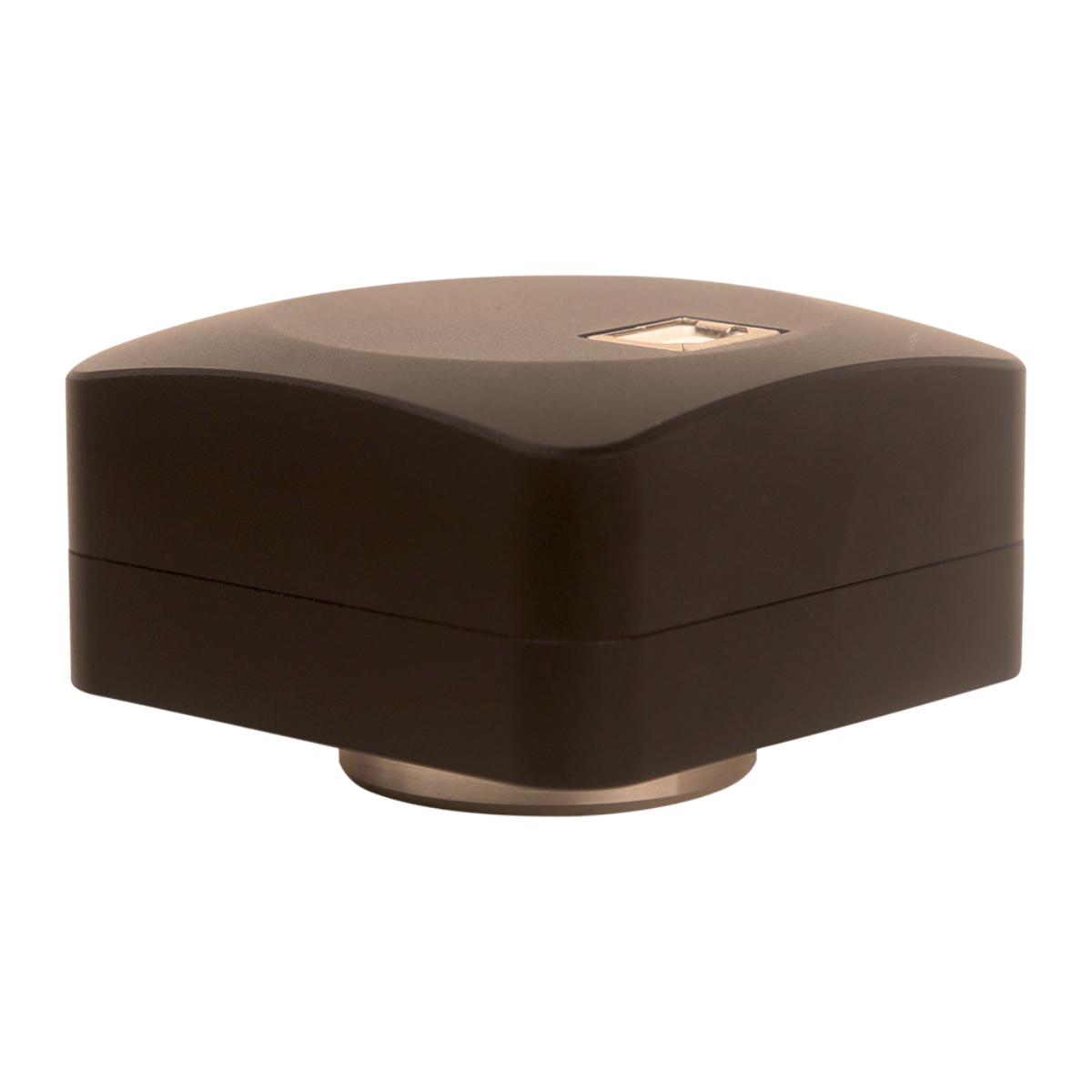

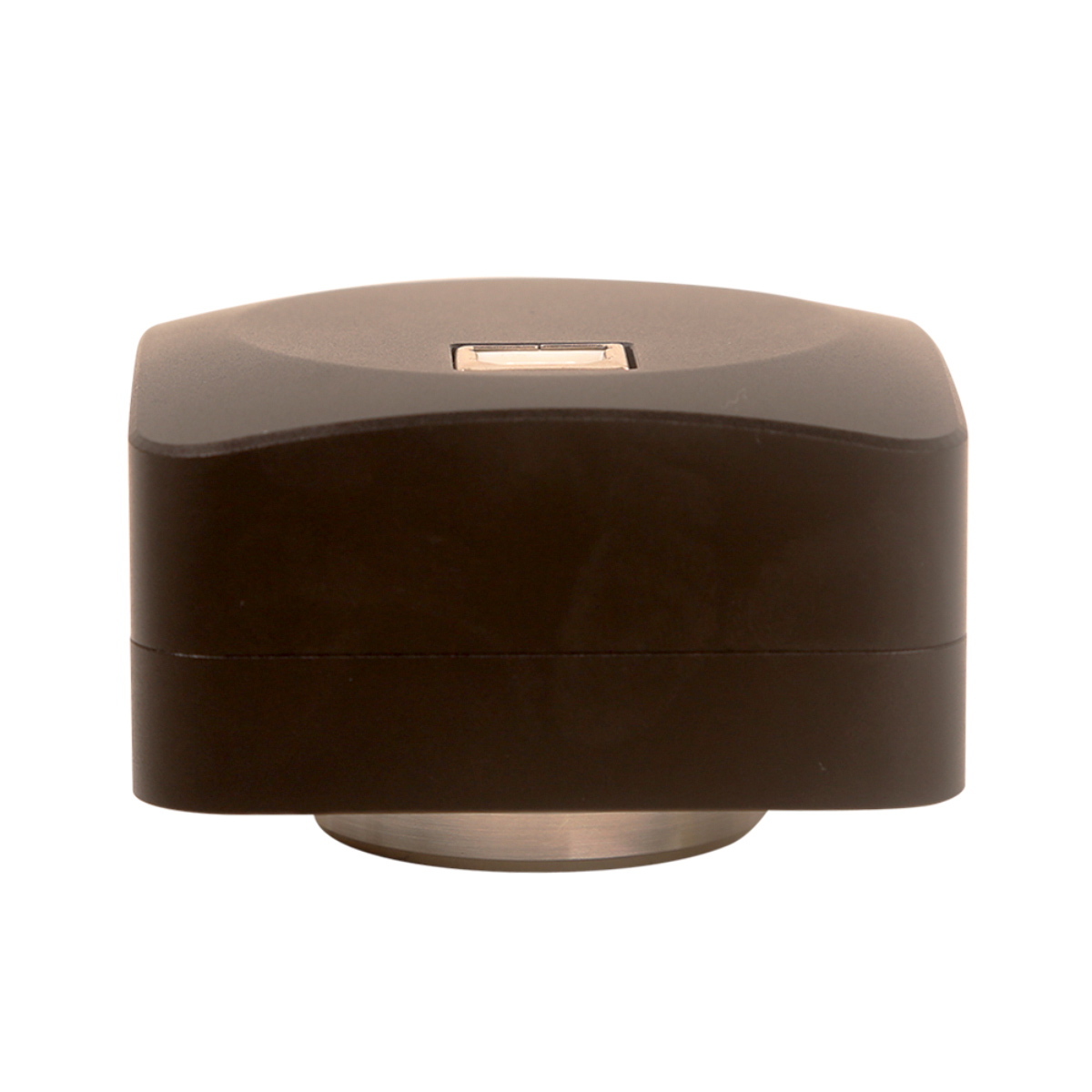

The STC2C body, made from tough, zinc alloy, ensures a heavy duty, workhorse solution. The camera is designed with a high quality IR-CUT to protect the camera sensor. No moving parts included. These measures ensure a rugged, robust solution with an increased lifespan when compared to other industrial camera solutions.
