C-mount WiFi CMOS Color Digital Camera
SWC series cameras are WiFi cameras and they adopt ultra-high performance CMOS sensor as the image capture device. WiFi is used as the data transfer interface.
When a SWC camera is attached to the eyepiece or trinocular head of a microscope and started, it will generates a WiFi signal for sending high-resolution images from a microscope to WiFi-enabled devices such as smartphones, tablets, and computers with iOS, Android, OS X, Linux and Windows operating systems, streaming images to up to six devices simultaneously.
The camera includes ImageView image software for quantifying, measuring and annotating images and for using with an interactive white board. It also works with the free, downloadable ImageView app for viewing, capturing, and editing images.|
Order Code |
Sensor Size(mm) |
Pixel(μm) |
G Responsivity Dynamic range SNRmax |
FPS/Resolution |
Binning |
Exposure(ms) |
|
SWC-1080 |
1080P/IMX222 (C) |
2.8x2.8 |
510mV with 1/30s |
25@1920x1080 |
1x1 |
0.059ms~1941ms |
|
SWC-720 |
720P/MT9P001 (C) |
2.2x2.2 |
1.0 V/lux-sec 61dB 43dB |
10@1280x720 |
2x2 |
Auto Exposure |
|
Other Specification for SWC Camera |
|
|
Spectral Range |
380-650nm (with IR-cut Filter) |
|
White Balance |
Whole Area White Balance/ Manual Temp Tint Adjustment/NA for Monochromatic Sensor |
|
Color Technique |
Ultra-FineTM Color Engine/NA for Monochromatic Sensor |
|
Capture/Control API |
Native C/C++, C#/VB.NET, DirectShow, Twain and Labview |
|
Recording System |
Still Picture and Movie |
|
Cooling System |
Natural |
|
Maximum Connected Devices |
<=3 |
|
Operating Environment |
|
|
Operating Temperature(in Centigrade) |
-10~ 50 |
|
Storage Temperature(in Centigrade) |
-20~ 60 |
|
Operating Humidity |
30~80%RH |
|
Storage Humidity |
10~60%RH |
|
Power Supply |
USB Charger, Not Recommend PC USB Port |
|
Software Environment |
|
|
Operating System |
Microsoft® Windows® XP / Vista / 7 / 8 /10 (32 & 64 bit) IOS IPAD or IPhone, Android PAD and Phone |
|
PC Requirements |
CPU: Equal to Intel Core2 2.8GHz or Higher |
|
Memory:2GB or More |
|
|
WiFi Adapter with DHCP Enabled |
|
|
Display:17” or Larger |
|
|
CD-ROM |
|
|
PAD |
IPAD or PAD with Android System |
|
Mobile Phone |
IPhone or Smart Phone with Android System |

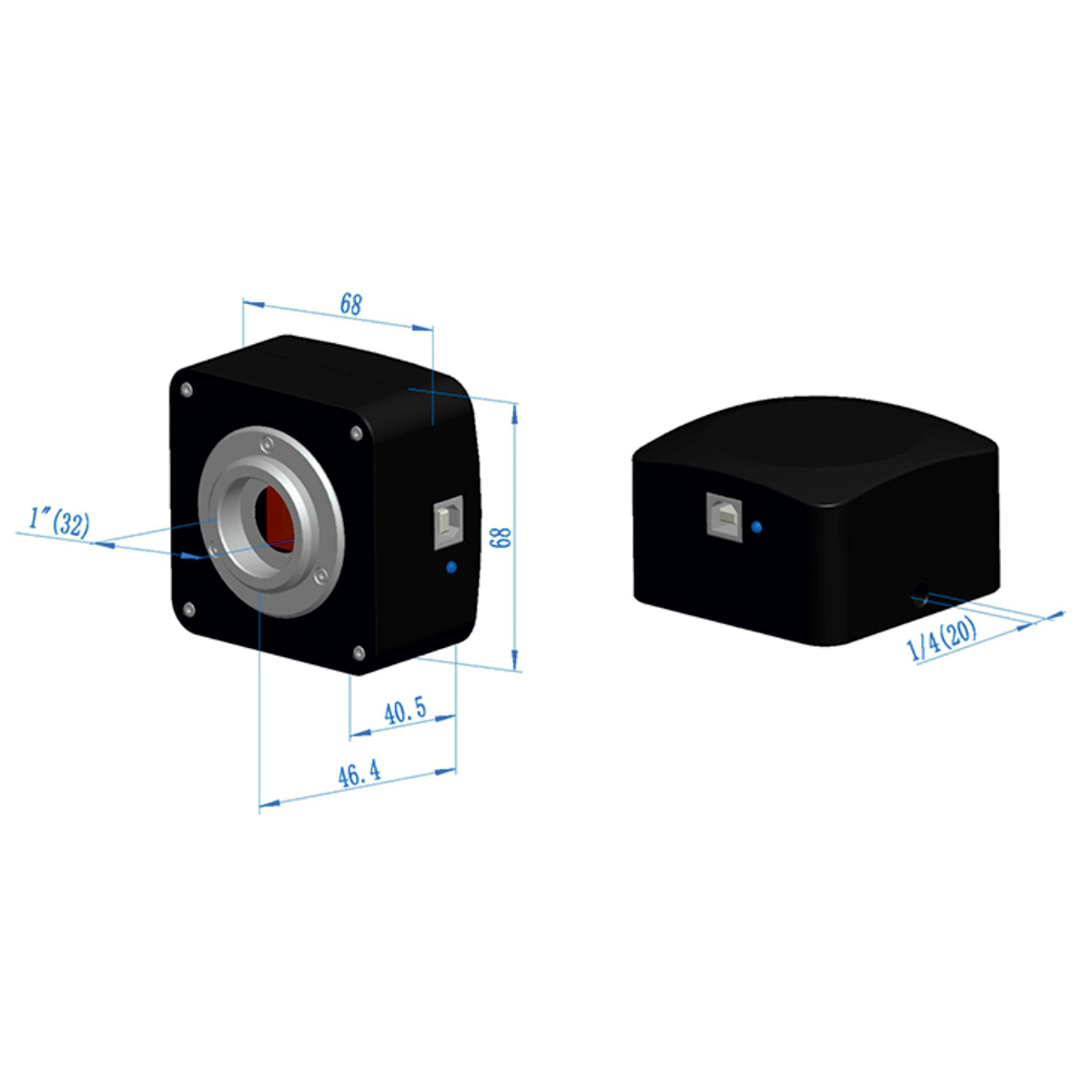

Dimension

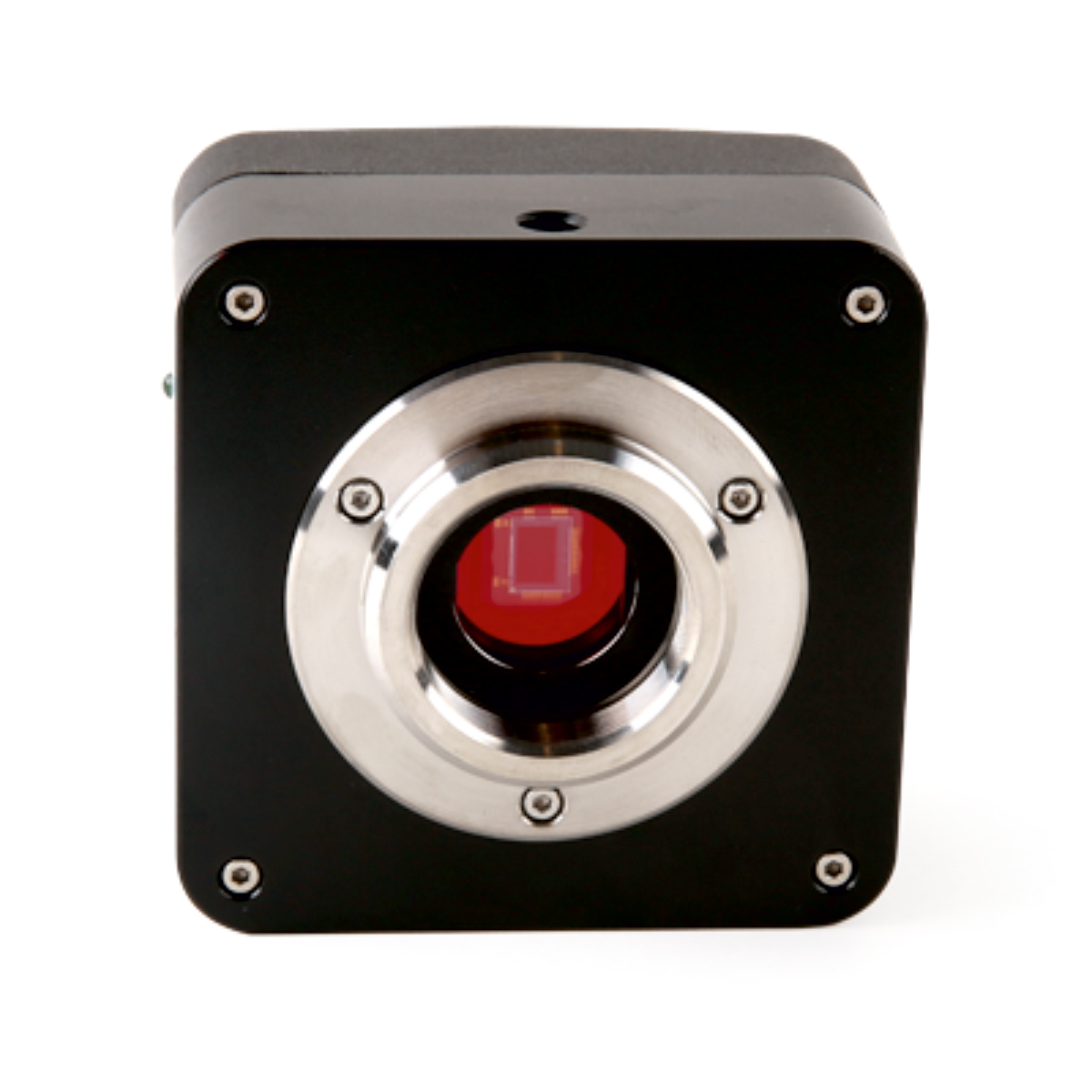

The SWC body, made from tough, zinc alloy, ensures a heavy duty, workhorse solution. The camera is designed with a high quality IR-CUT to protect the camera sensor. No moving parts included. This design ensures a rugged, robust solution with an increased lifespan when compared to other industrial camera solutions.
