Biological Microscope
STM-2022 series microscopes are economic, practical and easy to operate. These microscopes adopt LED illumination, which save energy and have long working life, it is also very comfortable for oSTMervation. These microscopes are widely used in educational, academic, agricultural and study field. With a microscope adapter, a digital camera (or digital eyepiece) can be plug into the trinocular tube or the eyepiece tube. Rechargeable battery is optional for outdoors operation or places that power supply is not stable.
|
Item |
Specification |
STM-2022M |
STM-2022B |
STM-2022T |
STM-2022BD |
|
Viewing Head |
Seidentopf Monocular Head, Inclined at 30°, 360° Rotatable |
Standard |
|
|
|
|
Seidentopf Binocular Head, Inclined at 30°, 360° Rotatable, Interpupillary Distance 48-75mm, |
|
Standard |
|
|
|
|

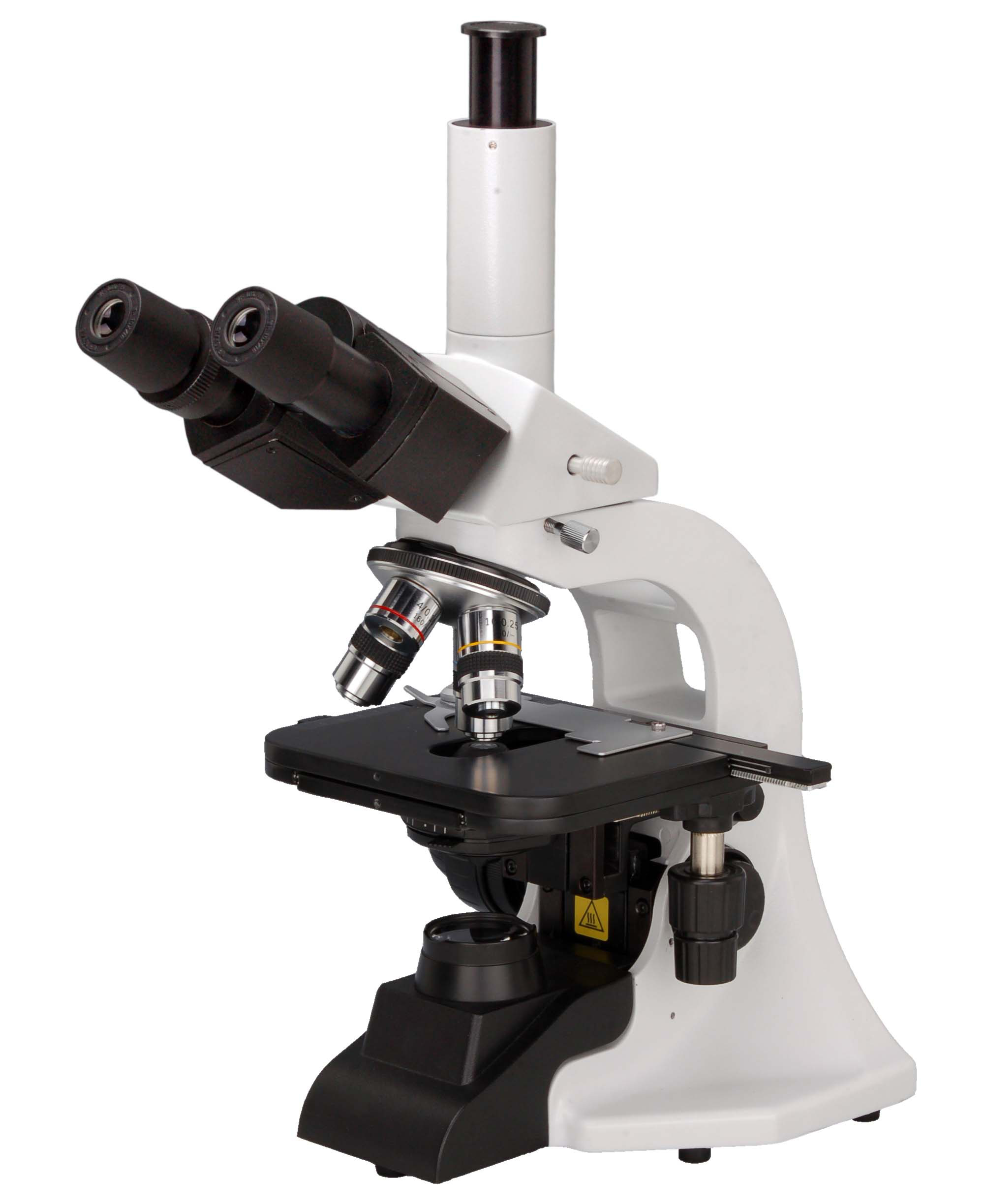

Seidentopf Trinocular Head, Inclined at 30°, 360° Rotatable, Interpupillary Distance 48-75mm |
|
|
Standard |
|
|
|
|

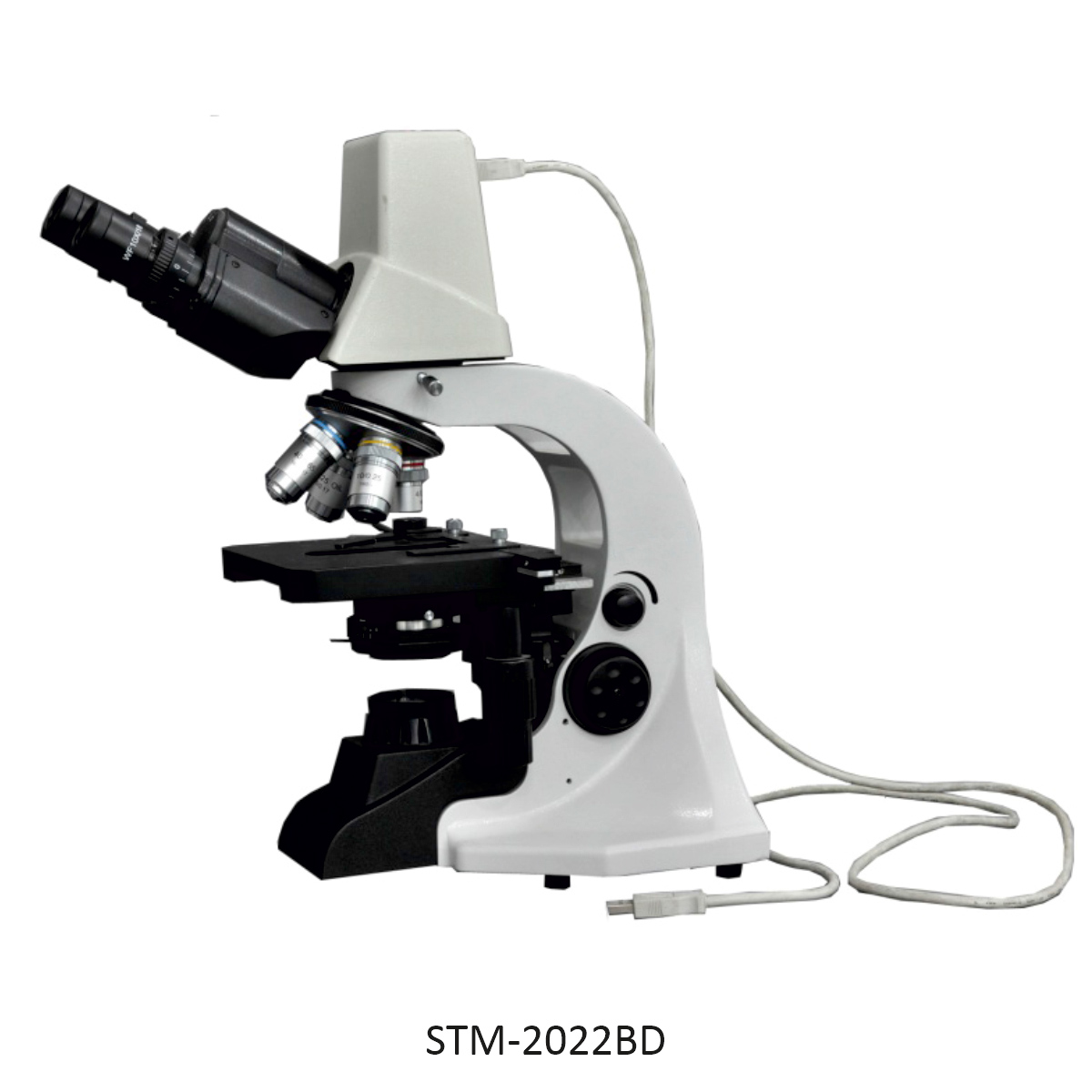

Seidentopf Binocular Head with 3.2MP digital camera, Inclined at 30°, 360° Rotatable, Interpupilary Distance 48-75mm, the software is ScopeImage 9.0 |
|
|
|
Standard |
|
Eyepiece |
WF10×/18mm |
Standard |
Standard |
Standard |
Standard |
|
WF16×/11mm |
Optional |
Optional |
Optional |
Optional |
|
|
Objective |
Achromatic Objective 4×, 10×, 40×, 100×(Oil) |
Standard |
Standard |
Standard |
Standard |
|
Plan Achromatic Objective 4×, 10×, 40×, 100×(Oil) |
Optional |
Optional |
Optional |
Optional |
|
|
Infinite Plan Achromatic Objective 4×, 10×, 20×, 40×, 60×, 100×(Oil) |
Optional |
Optional |
Optional |
Optional |
|
|
Nosepiece |
Backward Quadruple Nosepiece |
Standard |
Standard |
Standard |
Standard |
|
Stage |
Double Layer Mechanical Stage 132×142mm/ 75×40mm |
Standard |
Standard |
Standard |
Standard |
|
Focusing |
Coaxial Coarse & Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation, Moving Range 20mm |
Standard |
Standard |
Standard |
Standard |
|
Condenser |
Abbe NA 1.25 with Iris Diaphragm and Filter |
Standard |
Standard |
Standard |
Standard |
|
Illumination |
1W S-LED illumination, Brightness Adjustable |
Standard |
Standard |
Standard |
Standard |
|
12V/ 20W Halogen Lamp, Brightness Adjustable |
Optional |
Optional |
Optional |
Optional |
|
|
Kohler illumination |
Optional |
Optional |
Optional |
Optional |
|
|
Optional Accessories |
Phase Contrast Kit |
Optional |
Optional |
Optional |
Optional |
|
Dark Field Attachment |
Optional |
Optional |
Optional |
Optional |
|
|
Polarization Attachment |
Optional |
Optional |
Optional |
Optional |
|
|
Rechargeable battery |
Optional |
Optional |
Optional |
Optional |
|
|
Photo Adapter: used for Nikon or Canon DSLR camera |
Optional |
Optional |
Optional |
Optional |
|
|
Video Adapter: 1X or 0.5X C-mount adapter |
Optional |
Optional |
Optional |
Optional |
|
|
Package |
1pc/carton, 32cm*26cm*44cm, 6kg |
Standard |
Standard |
Standard |
Standard |
STM-2022 series microscopes are ideally suited for school biological education and medical analyses area to oSTMerve all kinds of slides. They can be widely used in clinics, hospitals, schools, academic laSTM and scientific research department.
