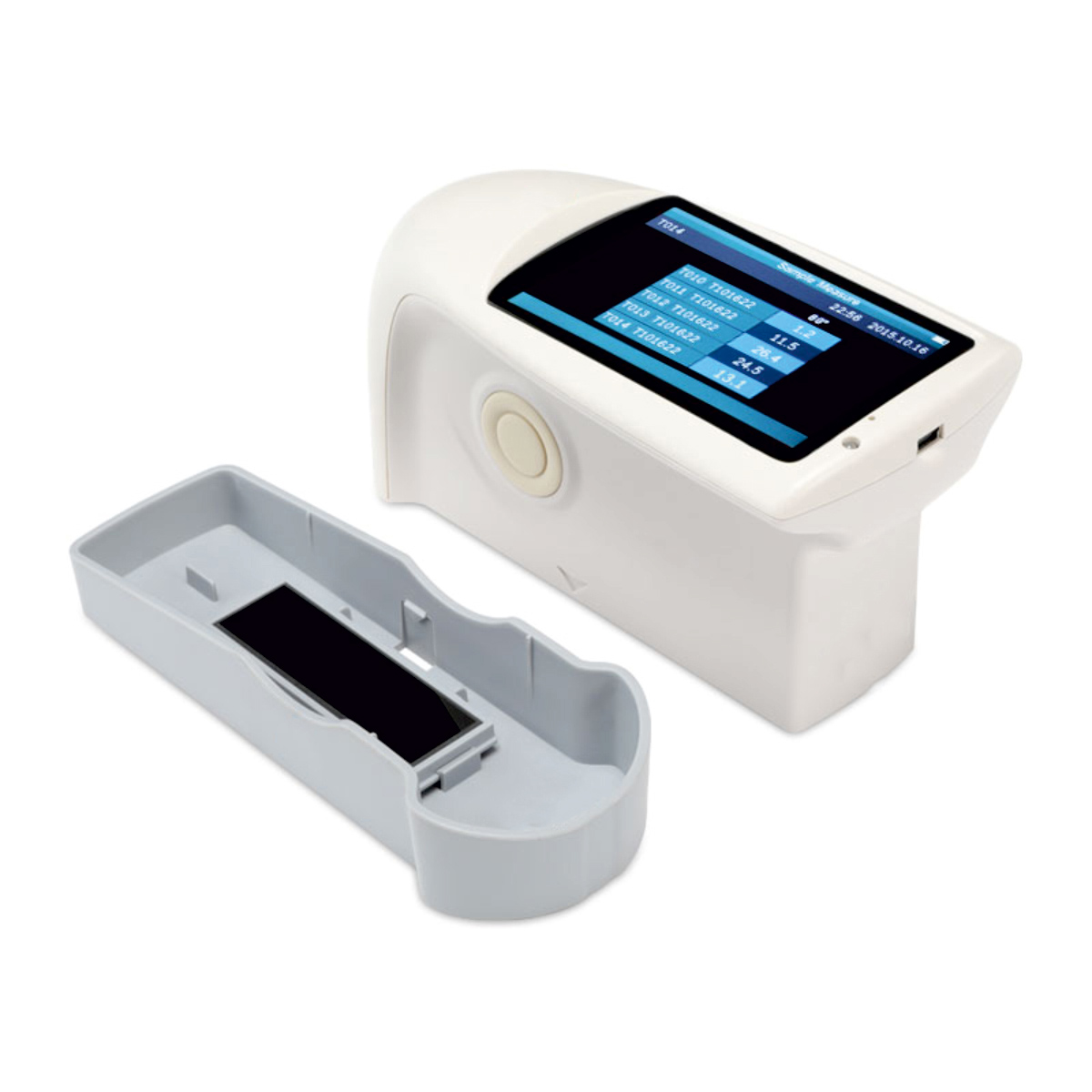

Tri-Angle Gloss Meter
TGM268 gloss meter features with 20, 60 and 85° angle, manufactured according to ISO2813. It is also compatible with international standards of ASTM D523, ASTM D2457. TGM268 conforms corresponding with CIE 1931(2°) under CIE C light source. TGM268 gloss meter is widely used to test glossiness in these industries, such as automobile, paint, ink, stoving varnish, coating, wood products, marble, granite, vitrified polished le, pottery brick and porcelain; plastic, paper; hardware industries, etc.
| Model | TGM268 |
| Measuring Angle |
20°/60°/85°° Comply with standard ISO 2813, ASTM D 523, ASTM D 2457 |
| Measuring Area(mm) | 20°: 10x10 60°: 9x15 85°: 5x36 |
| Measuring Range | 20°:0~1000GU 60°:0~1000GU 85°:0~160GU |
| Division Value | 0.1GU |
|
Measurement Range Repeatability Reproducibility |
0-10GU 10-100GU 100-1000GU ± 0.1GU ± 0.2GU ± 0.2%GU ± 0.2GU ± 0.5GU ± 0.5%GU |
| Chromacity Corresponding | Corresponding with CIE 1931(2°) under CIE C light source |
| Errors | ±1.5 , ± 1.5% |
| Measuring Time | 0.5s |
| Dimension | L*W*H : 160mm*75mm*90mm |
| Weight | 350g |
| Battery | 3200mAh Li-ion Baery, >10000 mes(within 8 hours) |
| Display | TFT 3.5 inch, capacitive touch screen |
| Interface |
USB/RS-232 |
| Data Save | Basic mode: 1000 |
| Software |
GQC6 Quality Control Software with QC report printing functions and more extended functions. |
| Operation Temperature | 0~40°C (32~104°F) |
| Storage Temperature | -20~50°C (-4~122°F) |
| Humidity | <85% relative humidity, no condensation |
| Standard Accessories |
Power Adapter, USB cable, User Manual, GQC6 software CD (except TGM268), Calibration Plate |
| Optional Accessories | Miniature Printer |
