Model

SMM-25

SMM-25P

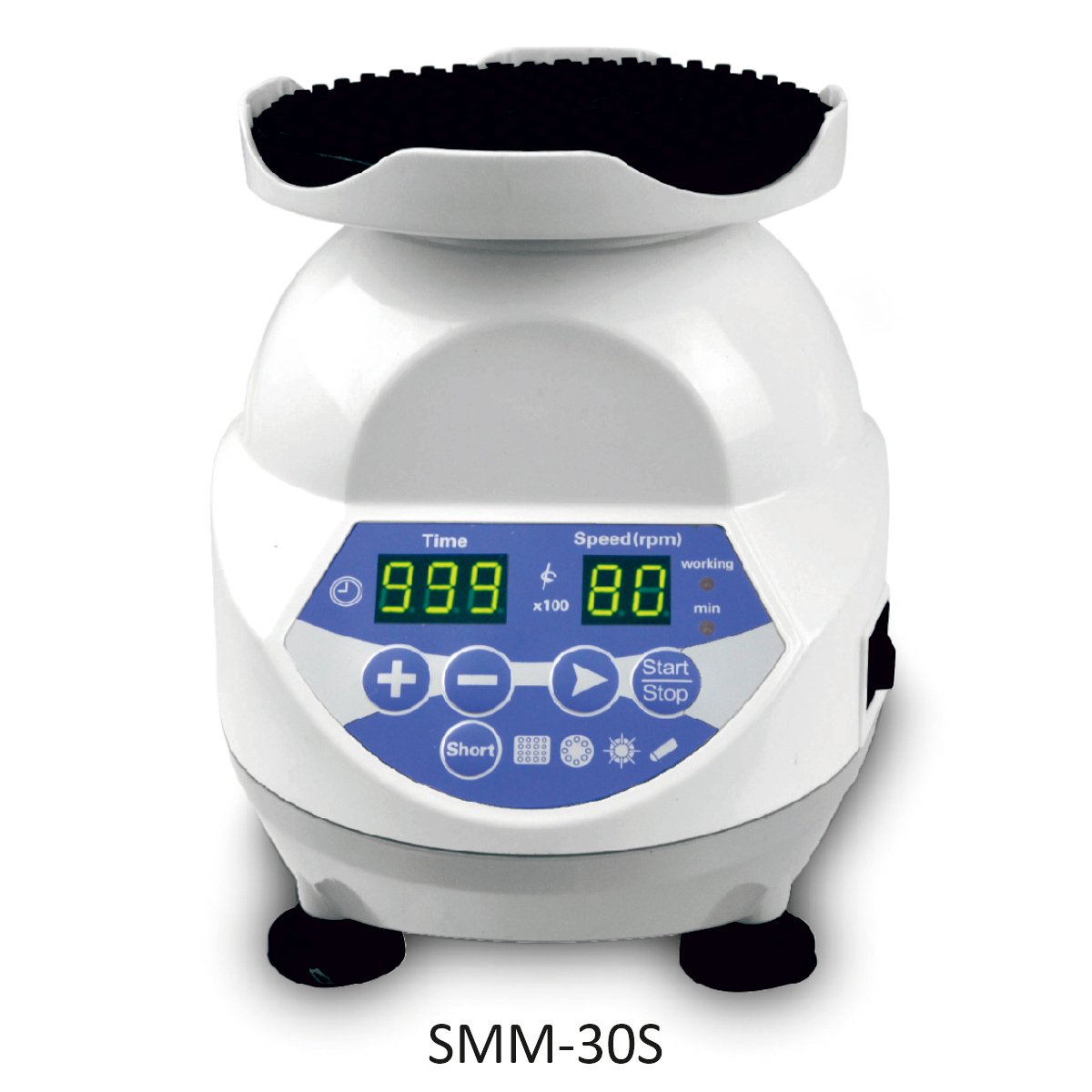

SMM-30S

Operation

knob + scale

knob + scale

key + Digital Display

Shaking Orbit

4mm

3mm

3mm

Shaking Mode

circle

circle

circle

Operation Mode

continuous or press running

continuous or press running

continuous running or short mix

Speed Range

0~2500rpm

0~2500rpm

300~3000rpm

Time Range

/

/

1s~999min

Voltage

AC 220V / AC 110V, 50/60Hz

AC 220V / AC 110V, 50/60Hz

DC24V

Power

60W

60W

30W

Suitable Optional Accessories

SM-A and SM-B

all

all

Fuse

250V, 1A, Φ5x20

250V, 1A, Φ5x20

/

Dimension

W.132 x D.156 x H.150mm

W.132 x D.156 x H.150mm

W.132 x D.156 x H.150mm

Net Weight

2.5kgs

2.5kgs

2.2kgs

Cat#

Description

SM-A

Standard head. Suit for tubes and containers with dia.<30mm

SM-P

Standard platform to hold foam tube holder

SM-B

Convex pad. Use with SM-P. Suit for tubes and containers with dia.<108mm

SM-C

Foam tube holder. Use with SM-P. For 0.2ml tubes, dia.5mm x 70 holes.

SM-D

Foam tube holder. Use with SM-P. For 0.5ml tubes, dia.6.6mm x 36 holes.

SM-E

Foam tube holder. Use with SM-P. For1.5/ 0.2ml tubes, dia.9.8mm x 20 holes.

SM-F

Foam tube holder. Use with SM-P. For 15ml tubes, dia.14mm x 8 holes.

SM-G

Foam tube holder. Use with SM-P. For 50ml tubes, dia.26.2mm x 4 holes.

SM-H

Tube holder platform. For 1.5/2.0ml tubes x 22

SM-I

Tube holder platform. For 15ml tubes x 4

SM-J

Tube holder platform. For 50ml tubes x 2

SM-K

Plate holder platform. For all standard plates

SM-L

Universal Platforms

Suitable for different types of plates and

tube stands, not include plate or stand)

384-well PCR plates, microplates, deep well plates can be directly put into the stand without stand support.

SMM-A

96x0.2ml tube stand. Applied to 0.2ml PCR tubes, PCR strips and 96-well PCR plates (semi-skirted and unskirted

SMM-B

24x0.5ml Tube Stand

SMM-C

24x0.5ml Tube Stand

SM-M

Customised
