Real-time PCR System

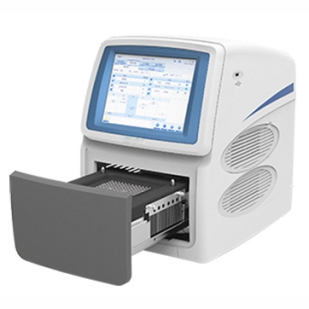

STN-96E is a real-time quantitative fluorescence PCR system designed by Stalwart to meet the experimental needs of high-end users. The product has various advantages including advanced efficient temperature control system and photoelectric system, powerful and easy-to-use software analysis function, and user-friendly control method, etc. and can easily process downstream multiplex gene detection, quantitative analysis, SNP analysis, dissociation curve analysis and other applications. It is widely used in medical institutions at all levels, universities and research institutes, CDC, Entry-Exit Inspection and Quarantine Bureau, Public Security Criminal Evidence Identification Center, veterinary centers, food and dairy product factories, as well as other fields and industries.
|
Model |
STN-96E |
|
Through Out |
96 |
|
Fluorescence Channels |
6 |
|
Compatible Fluorophores |
Channel 1: FAM. SYBR Green I, SYTO 9, Eva Green, LC Green Channel 2: HEX, VIC, TET, JOE Channel 3: ROX, Texas Red Channel 4: Cy5 Channel 5: Alexa Fluor 680 Channel 6: FRET |
|
Light Source |
High -brightness long-life and maintenance-free LED light source excitation from the top |
|
Detector |
Photodiode (PD), top scanning |
|
Heating Rate |
Maximum Heating Ramp rate ≥6.1˚C/s; Average heating ramp rate ≥4.5˚C/s |
|
Cooling Rate |
Maximum Cooling Ramp rate ≥5.0˚C/s; Average heating ramp rate ≥2.8˚C/s |
|
Temperature Uniformity |
± 0.1˚C |
|
Temperature Accuracy |
≤ 0.1˚C |
|
Special Temperature Setting function |
Support Thermal gradients PCR, Touch down PCR |
|
Suitable Consumables |
0.2mL 96-well plates, 8-tube strips, single tubes, |
|
Sample Testing Linearity and Repeatability |
Linear Correlation: /r/ ≥0.999 Repeatability: cycle threshold (Ct) value CV ≤0.5% |
|
Software Analysis |
Qualitative analysis, absolute quantitative analysis, relative quantitative analysis, end point fluorescence analysis, melting curve analysis, and genotyping analysis, etc. |
|
Control Method |
Stand-alone operation: 10.4-inch touch screen control; Cloud-enabled: PC software control via direct connection or LAN (local area network) |
|
Power Failure Protection |
Automatic recovery of the experiment and other function when the power is on again after cutting off, without waiting for the power-on of the computer or software control. |
|
Data Storage and Transmission |
A single machine can store more than 1000 experimental data files, which can be imported and exported via USB disks |
|
Reporting Function |
Built-in experiment report templates for a variety of industries; Fully open universal reporting of which the contents and formats can be customized |
|
Operating System for PC |
Win 7, Win 10 |
|
Instrument Dimension |
355mmx475mmx484mm (WxLxH) |
|
Weight |
30kg (net) |
|
Power Supply and Power Consumption |
AC 100-240V, 50-60Hz; 900VA |
