Stereo Microscope
Stereo microscopes are also
known as low magnification and dissecting microscopes. STM-3010 series stereo microscope offers upright, un-reversed 3D images
with high resolution and high quality. Optional eyepieces and objectives expand
magnification range and working distances.

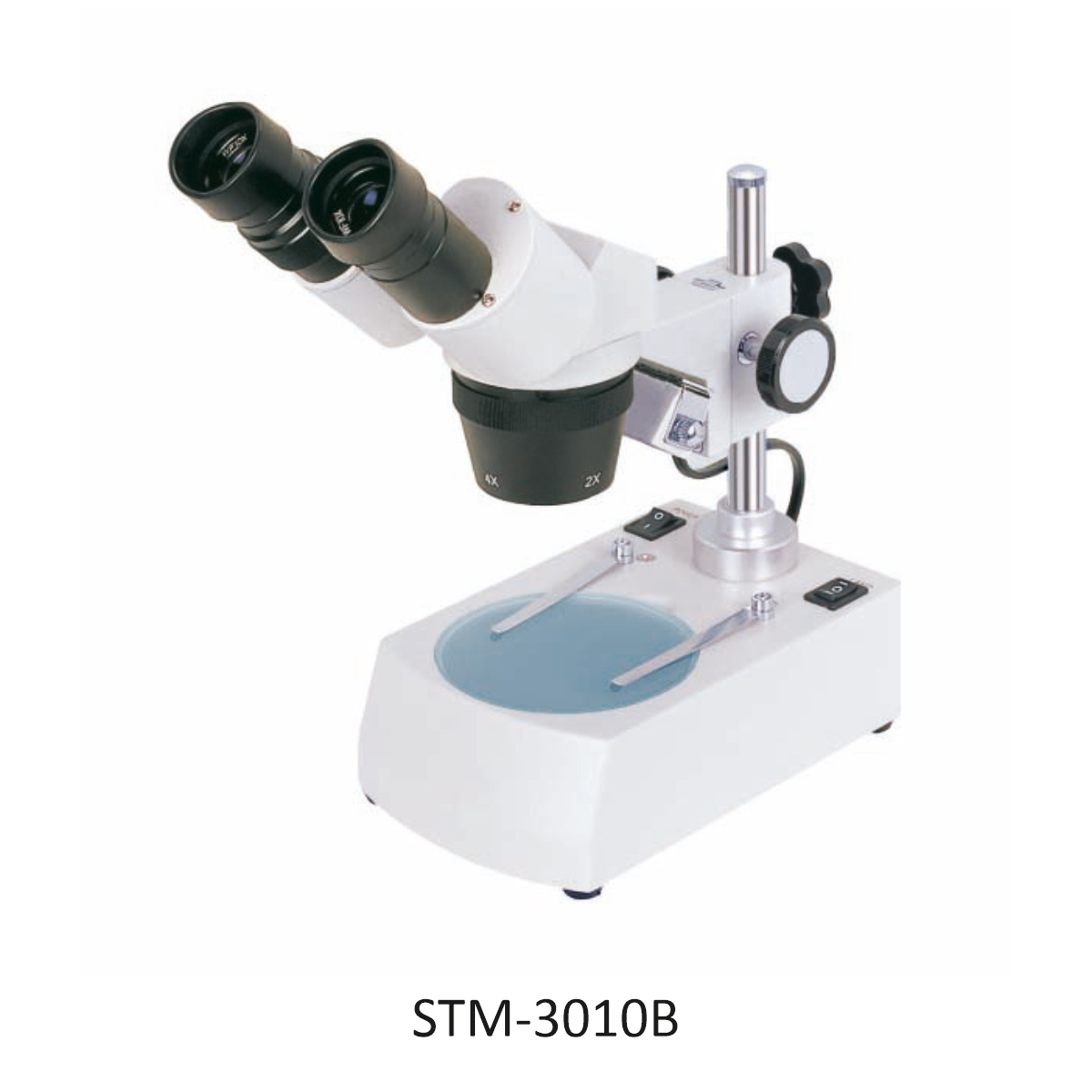

STM-3010 is a smart and
cost-effective stereo microscope. Optional cold light and ring light can be
chosen for this microscope. They are widely used in electric factories, schools
laboratories, sculpture, families and so on.
|
Item |
Specification |
STM-3010A |
STM-3010B |
|
Viewing Head |
Binocular Viewing Head, 45° Inclined, Interpupilary Distance 55-75mm, Un-rotatable |
Standard |
|
|
Binocular Viewing Head, 45° Inclined, Interpupilary Distance 55-75mm, 360° Rotatable |
|
Standard |
|
|
Eyepiece |
WF5×/20mm |
Optional |
Optional |
|
WF10×/20mm |
Standard |
Standard |
|
|
WF15×/15mm |
Optional |
Optional |
|
|
WF20×/10mm |
Optional |
Optional |
|
|
Objective |
2×, 4× |
Standard |
Standard |
|
1×, 2× |
Optional |
Optional |
|
|
1×, 3× |
Optional |
Optional |
|
|
Working Distance |
57mm |
Standard |
|
|
76mm |
|
Standard |
|
|
Illumination |
Transmitted halogen light 12V/ 10W |
Standard |
Standard |
|
Incident halogen light 12V/ 10W |
Standard |
Standard |
|
|
Transmitted & Incident LED illumination |
Optional |
Optional |
|
|
Package |
4pcs/carton, 68cm*31cm*38cm, 16kg |
Standard |
Standard |
STM-3010 series stereo microscopes are widely applied in circuit board repair, circuit board inspection, surface mount technology work, electronics inspection, coin collecting, gemology and gemstone setting, engraving, and repair and inspection of small parts.
