Monocular Zoom Microscope

STM-1080 Series

Description
Features
Specifications
Literature

STM-1080 Series Monocular Zoom microscopes adopt apochromatic parallel optical imaging system and provide high resolution and sharp stereoscopic images. This series microscopes are designed for the applications in the fields of machine vision, industrial inspection and scientific research. Modularization product portfolio and excellent optical performance make them a better choice in these areas.

Adopt apochromatic parallel optical imaging system, use advanced multi-layer coating technology, excellently correct the imaging on the edge of field of view. Get high-resolution and high contrast images, naturally restore the true colors of observed objects.
Compact design, so that all functions are concentrated in a tube, it is very suitable for the small installation space in modern equipment.
Zoom ratio 1:8.3, zoom range 0.6×-5×, standard working distance 88mm, can meet the requirement of machine vision conventional imaging.
There are a variety of auxiliary lens and C-mount eyepiece adapter for option, make the system’s optical magnification range 0.054×-1500×, working distance 2mm-270mm, object field of view 0.004mm-20mm.
LED Ring light, Polarizing illumination, Coaxial illumination system are optional, Coaxial illumination adopts single high brightness 3W LED, color temperature 5500K, uniform lighting, suitable for high reflectivity surface precision detection and limited exterior lighting occasions.
Adopt modular design, various additional accessories are optional to make the microscope a powerful devoice for your jobs.

Item	Specification	STM-1080A	STM-1080B	STM-1080C
Optical System	Infinite apochromatic parallel optical system	Standard	Standard	Standard
Zoom Lens	Optical zoom magnification: 0.6×-5.0×	Standard	Standard	Standard
Zoom ratio	1:8.3	Standard	Standard	Standard
Viewing head	Monocular Viewing head with 10×/18mm, 15×/12mm, 20×/11mm eyepiece, Φ23.2mm	Optional	Optional	Optional
90° Prism	Used to turn the angle of camera or objective, so as to short the size	Optional	Optional	Optional
Mounting Size	Φ40mm	Standard	Standard	Standard
Mounting Adapter	Mounting Adapter (39.6 to 45mm), used to connect the STM-1080A to 45mm focus arm	Optional	Optional	Optional
Mounting Adapter	Mounting Adapter (39.6 to 50mm), used to connect the STM-1080A to 50mm focus arm	Optional	Optional	Optional
LCD Digital Camera	SLC-520 digital camera with HDMI and WIFI output, can capture 2.0MP pictures, videos and do measurement, control with mouse; 11.6 inch LCD screen, resolution 1920*1080	Optional	Optional	Optional
	SLC-520AF Auto focus digital camera with HDMI and WIFI output, can capture 2.0MP pictures, videos and do measurement, control with mouse; 11.6 inch LCD screen, resolution 1920*1080	Optional	Optional	Optional
	SLC-550 digital camera with HDMI and WIFI output, can capture 5.0MP pictures, videos and do measurement, control with mouse; 11.6 inch LCD screen, resolution 1920*1080.	Optional	Optional	Optional
	SLC-550AF Auto focus digital camera with HDMI and WIFI output, can capture 5.0MP pictures, videos and do measurement, control with mouse; 11.6 inch LCD screen, resolution 1920*1080.	Optional	Optional	Optional
C-mount Adapter	0.3× C-mount adapter	Optional	Optional	Optional
	0.4× C-mount adapter	Optional	Optional	Optional
	0.5× C-mount adapter	Standard	Standard	Standard
	0.67× C-mount adapter	Optional	Optional	Optional
	1× C-mount adapter	Optional	Optional	Optional
	1.5× C-mount adapter	Optional	Optional	Optional
	2× C-mount adapter	Optional	Optional	Optional
	3× C-mount adapter	Optional	Optional	Optional
Auxiliary Lens	0.3× /WD: 270mm	Optional	Optional	Optional
	0.5× / WD: 160mm	Optional	Optional	Optional
	0.6× / WD: 130mm	Optional	Optional	Optional
	1× / WD: 88mm	Standard	Standard	Standard
	1.5× / WD: 52mm	Optional	Optional	Optional
	2× / WD: 39mm	Optional	Optional	Optional
Infinite LWD Plan Achromatic Metallurgical Objective Lens	5×, NA: 0.12, WD: 26.1mm	Optional	Optional	Optional
	10×, NA: 0.25, WD: 20.2mm	Optional	Optional	Optional
	20×, NA: 0.40, WD: 8.8mm	Optional	Optional	Optional
	40×, NA: 0.6, WD: 3.98mm	Optional	Optional	Optional
	50×, NA: 0.70, WD: 3.68mm	Optional	Optional	Optional
	60×, NA: 0.75, WD: 1.22mm	Optional	Optional	Optional
	80×, NA: 0.80, WD: 1.25mm	Optional	Optional	Optional
	100×, NA: 0.85, WD: 0.4mm	Optional	Optional	Optional
Infinite LWD Plan Apochromatic Metallurgical Objective	5×, NA: 0.13, WD: 44.5mm	Optional	Optional	Optional
	10×, NA: 0.28, WD: 34mm	Optional	Optional	Optional
	20×, NA: 0.29, WD: 31mm	Optional	Optional	Optional
	50×, NA: 0.42, WD: 20.1mm	Optional	Optional	Optional
Coaxial light Device	Coaxial Device, light input port Φ11mm (does not include light source)	Optional	Optional	Optional
	Coaxial point light source: 3W LED, 5500K, brightness adjustable	Optional	Optional	Optional
	Polarized Coaxial Device, light input port Φ11mm (does not include light source)	Optional	Optional	Optional
Ring Light	SAL-48A LED Ring light, brightness adjustable	Optional	Standard	Standard
Ring Light	Polarized LED Ring light, brightness adjustable	Optional	Optional	Optional
Other Accessories	Metallurgical objective adapter (used to connect metallurgical objectives onto the zoom body)	Optional	Optional	Optional
	Triple Nosepiece for metallurgical objectives	Optional	Optional	Optional
	Quadruple Nosepiece for metallurgical objectives	Optional	Optional	Optional
	SSL-3B LED light source with dual goose neck light guide, 6.5W	Optional	Optional	Optional
	SMS-302 X-Y moving stage	Optional	Optional	Optional
	SSL2-150A-1 Cold light source with Single Light Guide, 150W	Optional	Optional	Optional
	SSL2-150A-2 Cold light source with Dual Light Guide, 150W	Optional	Optional	Optional
	SSL2-150A-O Cold light source with Annular Ring Light Guide, 150W	Optional	Optional	Optional

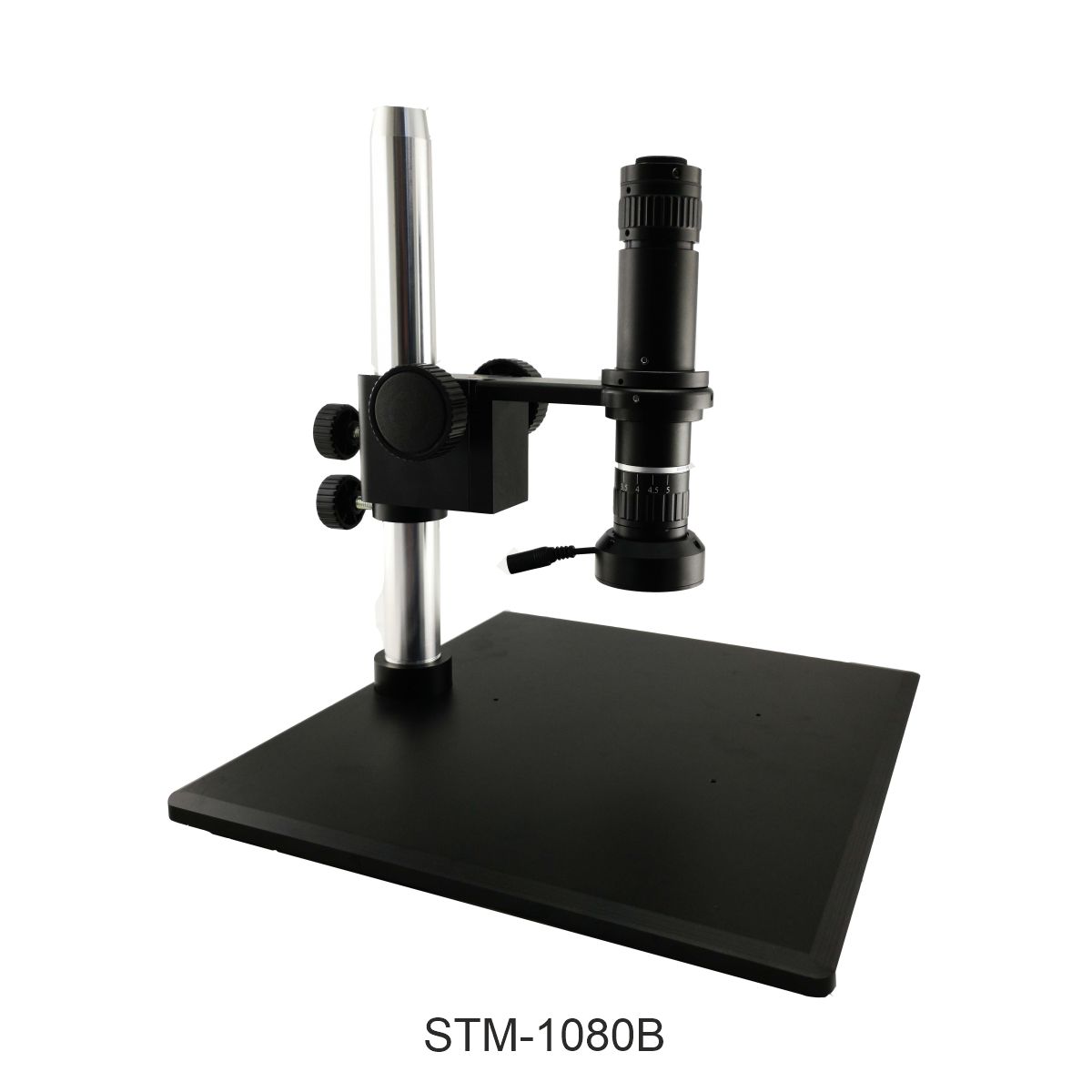

Stand and focus arm	SA1 Pillar type column plain stand with coarse focus arm	Optional	Standard	Optional

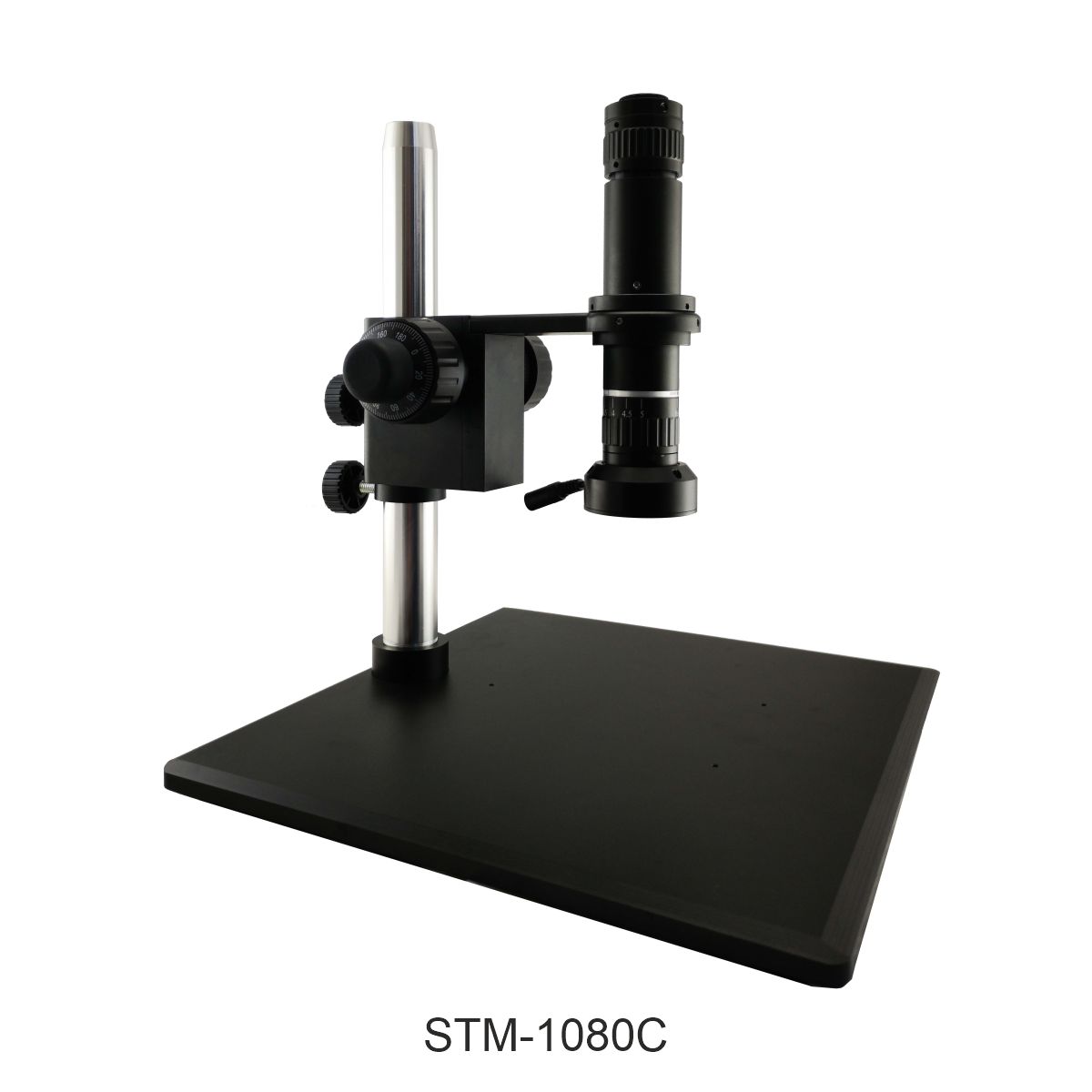

	SA2 Pillar type column plain stand with coarse and fine focus arm	Optional	Optional	Standard
	SA3 Square type column plain stand with coarse and fine focus arm	Optional	Optional	Optional
	SA4 Square type column plain stand with coarse and fine focus arm, transmitted 10W LED illumination	Optional	Optional	Optional
	SA5 multi-angle column plain stand with coarse focus arm	Optional	Optional	Optional

STM-1080 Series Brochure
