Digital Microscope

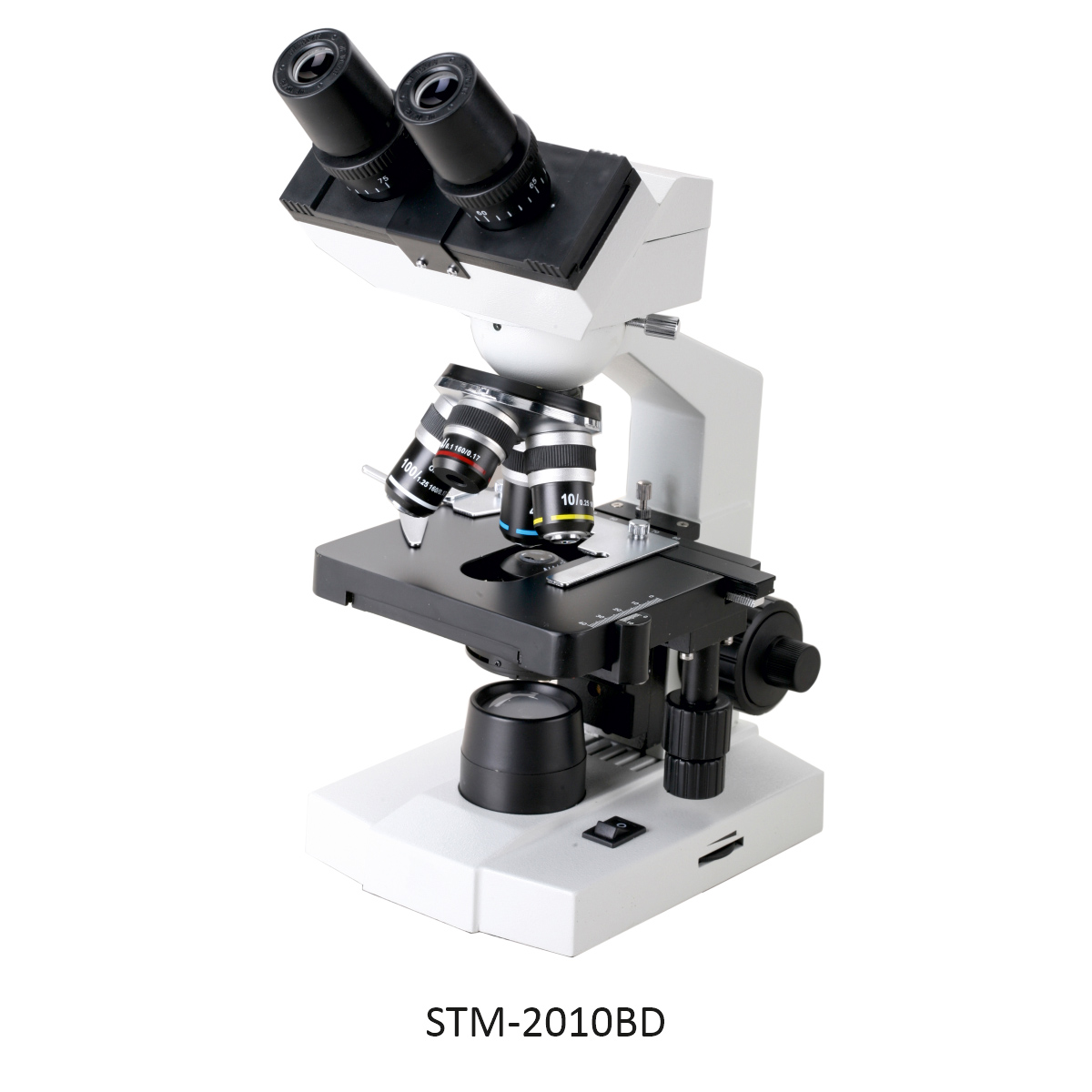

STM-2010MD/BD digital microscope feature a built-in 1.3MP Digital Camera and professional software offering high resolution and user friendly operation. This combination of microscope, digital imaging system and software is easy to operate and offers outstanding performance. It can preview, take photos, videos and do measurement. LED illumination saves energy and has long working life.
|
Item |
Specification |
STM-2010MD |
STM-2010BD |
|
Viewing Head |
Monocular head, Inclined at 45º, 360º Rotatable |
Standard |
|
|
Binocular head, Inclined at 45º, 360º Rotatable, 55-75mm |
|
Standard |
|
|
Camera System |
Resolution: 1280×1024(1.3MP) |
Standard |
Standard |
|
Output: USB2.0 |
Standard |
Standard |
|
|
Operation System: Windows 2000/XP/VISTA/Win 7/8/10 |
Standard |
Standard |
|
|
Software: ScopeImage 9.0 |
Standard |
Standard |
|
|
Eyepiece |
Wide Field Eyepiece: WF10×/18mm |
Standard |
Standard |
|
WF5×/20mm, WF16×/11mm, WF25×/8mm |
Optional |
Optional |
|
|
Objective |
Achromatic Objective: 4×, 10×, 40×(S), 100×(S, Oil) |
Standard |
Standard |
|
Achromatic Objective: 20×, 60× |
Optional |
Optional |
|
|
Stage |
Double Layers Mechanical Stage: 110×120mm, Moving Range X-Y: 70×20mm |
Standard |
Standard |
|
Condenser |
Abbe NA 1.25 Condenser with Iris Diaphragm (Φ2-Φ28mm) |
Standard |
Standard |
|
Focusing |
Coaxial Coarse and Fine Adjustment, Moving Range 10mm |
Standard |
Standard |
|
Illumination |
1W LED illumination, brightness adjustable |
Standard |
Standard |
|
Accessories |
Operation manual, dust cover, AC adapter and USB cable |
Standard |
Standard |
|
Package |
1pc/carton, 28cm×22cm×40cm, 5kg |
Standard |
Standard |
STM-2010MD/BD digital microscopes are primarily designed for school students to do image analysis and distant sharing. The microscopes also provide a superior cost effective solution for computer interactive laboratory, clinical environments and individuals as hobby etc.
