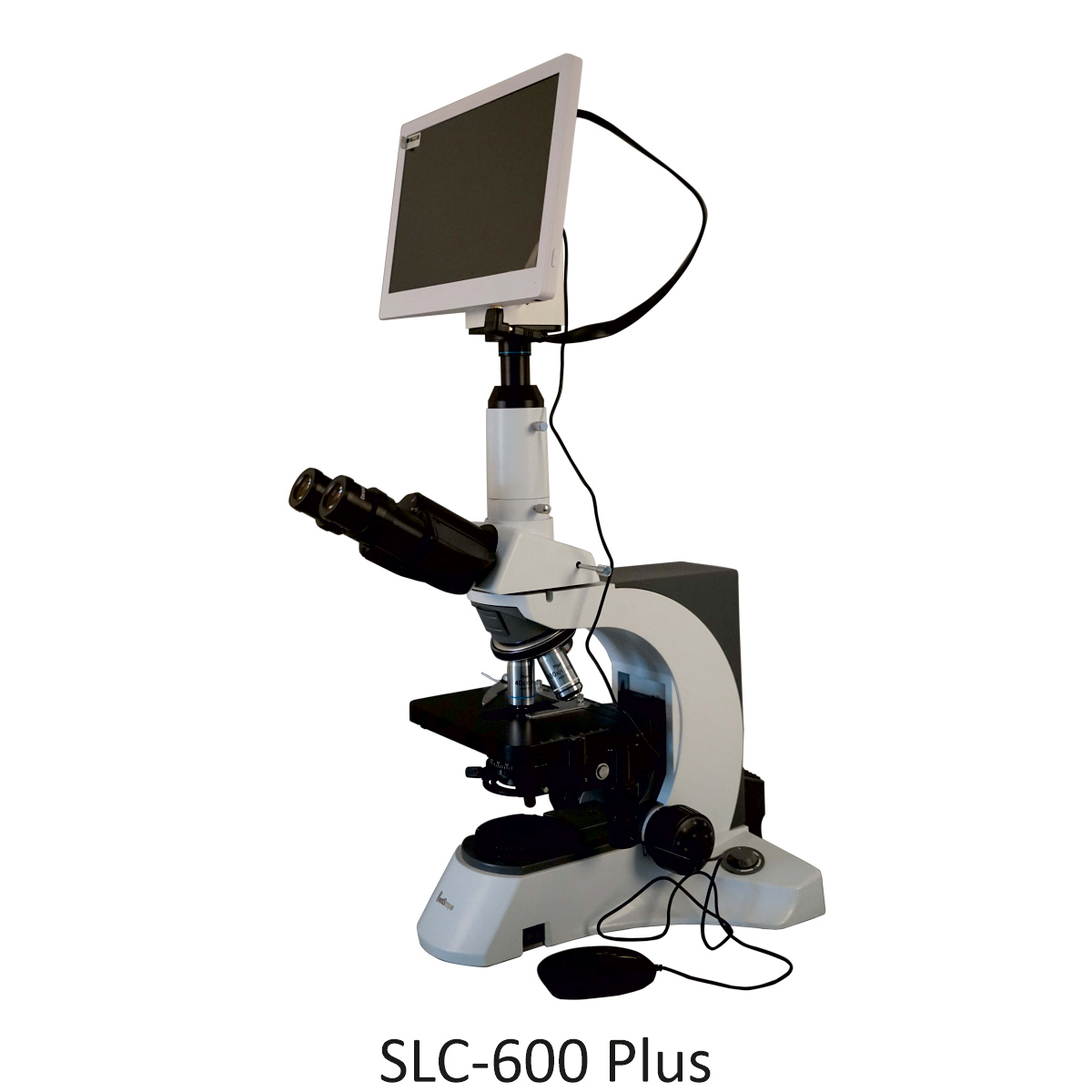

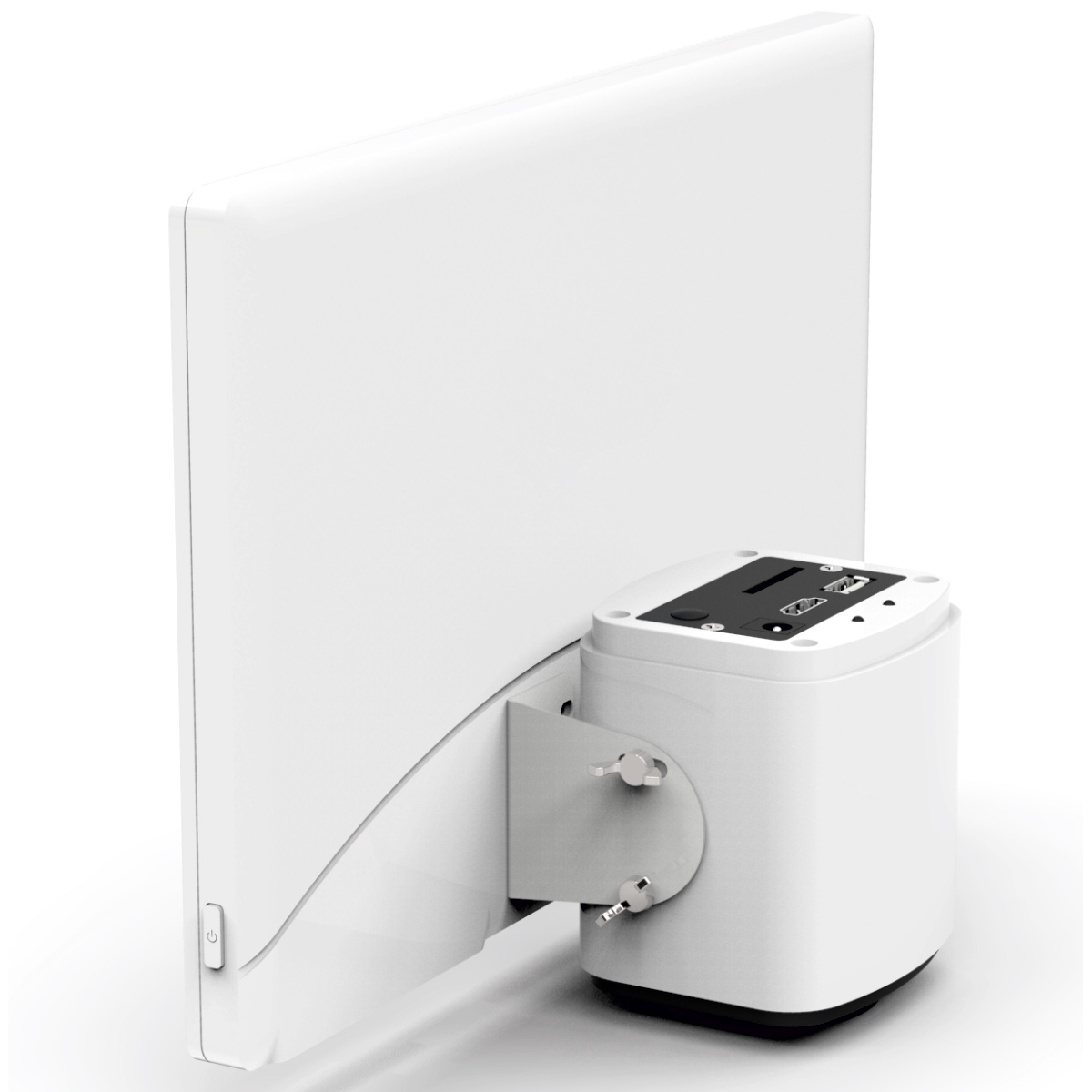

HD LCD Color Digital Camera
SLC-600/SLC-600 PLUS/SLC-600AF HDMI LCD Digital Camera is a brand new high performance and highly cost- effective, super reliable HD LCD camera which combines a full HD camera and a retina HD LCD screen.
With the built-in software, the SLC-600/SLC-600 PLUS/SLC-600AF can be controlled by a mouse to take pictures, take videos and do measurement. Equipped with Sony COMS sensor and 11.6” retina HD LCD screen, it is developed specifically for different microscopy applications. SLC-600AF has auto focus and one click focus function.
|
Model |
SLC-600 |
SLC-600 PLUS |
SLC-600AF |
|
|
HDMI Camera |
Image Sensor |
CMOS, Sony IMX307 |
||
|
Chip Size |
1/2.8" |
|||
|
Video Resolution |
1920 × 1080 |
|||
|
Captured Image Resolution |
3264 × 1836 on SD card to LCD monitor, 1920 × 1080 and 3264 × 1836 with software to PC |
|||
|
Frame Rate |
1920 × 1080 30fps via USB2.0 1920 × 1080 60fps via HDMI |
|||
|
Data Record |
High speed SD Card (8G) |
|||
|
Video Record |
1080p 30fps in SD Card 1080p 30fps in PC |
|||
|
Scan Mode |
Progressive |
|||
|
Electronic Shutter |
Electronic Rolling Shutter |
|||
|
A/D conversion |
8 bit |
|||
|
Color Depth |
24bit |
|||
|
Sensitivity |
510mV |
|||
|
Dynamic Range |
68dB |
|||
|
S/N ratio |
52dB |
|||
|
Exposure time |
0.001 sec ~ 10.0 sec |
|||
|
Exposure |
Auto/Manual |
|||
|
White balance |
Auto |
|||
|
Settings |
Gain,Gamma,Saturation,Contrast, scale bar function |
|||
|
Measurement Function when connected to LCD Monitor |
Simple measurement function, only line |
Complete measurement function, including Anchor Point, Line, Freehand Line, Rectangle, Circle, Polygon, Point-line Distance, Concentric Circles, Bicircle, Angle etc. |
||
|
PC software |
Capture2.0 |
|||
|
Output model 1 |
USB2.0 |
|||
|
Output model 2 |
HDMI |
|||
|
System Compatible |
Windows XP/Vista/Win 7/10(32 and 64-bit ), MAC OSX |
|||
|
Optical port |
C- Mount |
|||
|
Power Supply |
DC 12V /2A |
|||
|
Operational Temperature |
0-60°C |
|||
|
Humidity |
45%-85% |
|||
|
Storage Temperature |
-20-70°C |
|||
|
Retina Screen |
Screen Size |
11.6 inch |
||
|
Aspect Ratio |
16:9 |
|||
|
Display Resolution |
1920 × 1080 |
|||
|
Display Type |
IPS-Pro |
|||
|
Brightness |
320cd/m2 |
|||
|
Static Contrast Ratio |
1000:1 |
|||
|
Input |
1*HDMI Port |
|||
|
Power Supply |
DC 12V /2A External Adapter |
|||
|
Dimension |
282mm×180.5mm×15.3mm |
|||
|
Net Weight |
600g |
|||
SLC-600/SLC-600+/SLC-600AF HDMI LCD digital camera can be widely used in medical diagnosis, industrial production and inspection, laboratory research and related microscopy field for image, video capture and analysis. With the high image quality and easy to operate, it will be your best assistant.
Surgical Microscopic Imaging
Pathology
Cytology
Defect Analysis
Semiconductor Inspection
Navigation for Processed Imaging
Industrial Optical HD Digital Imaging
Astronomical Observation
