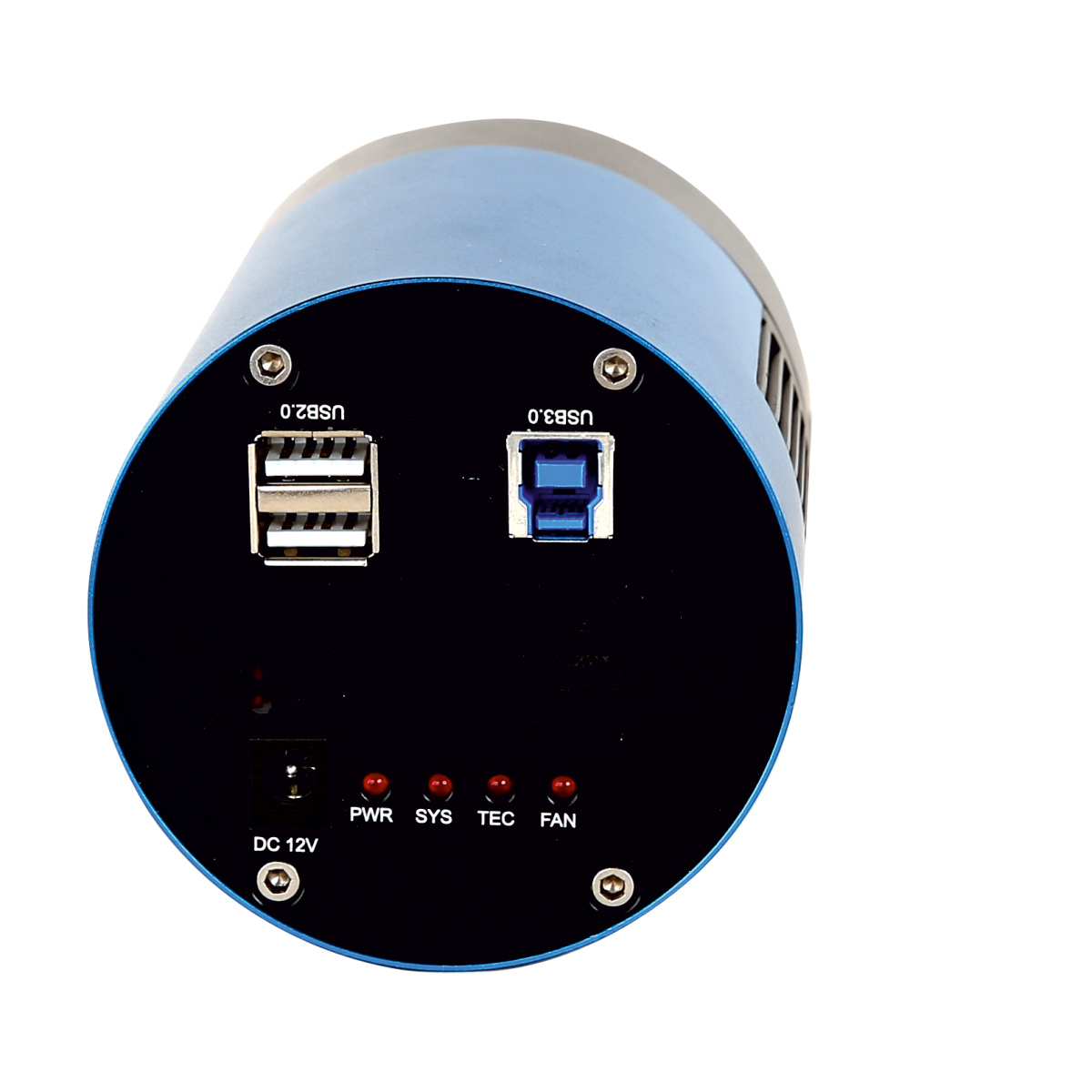

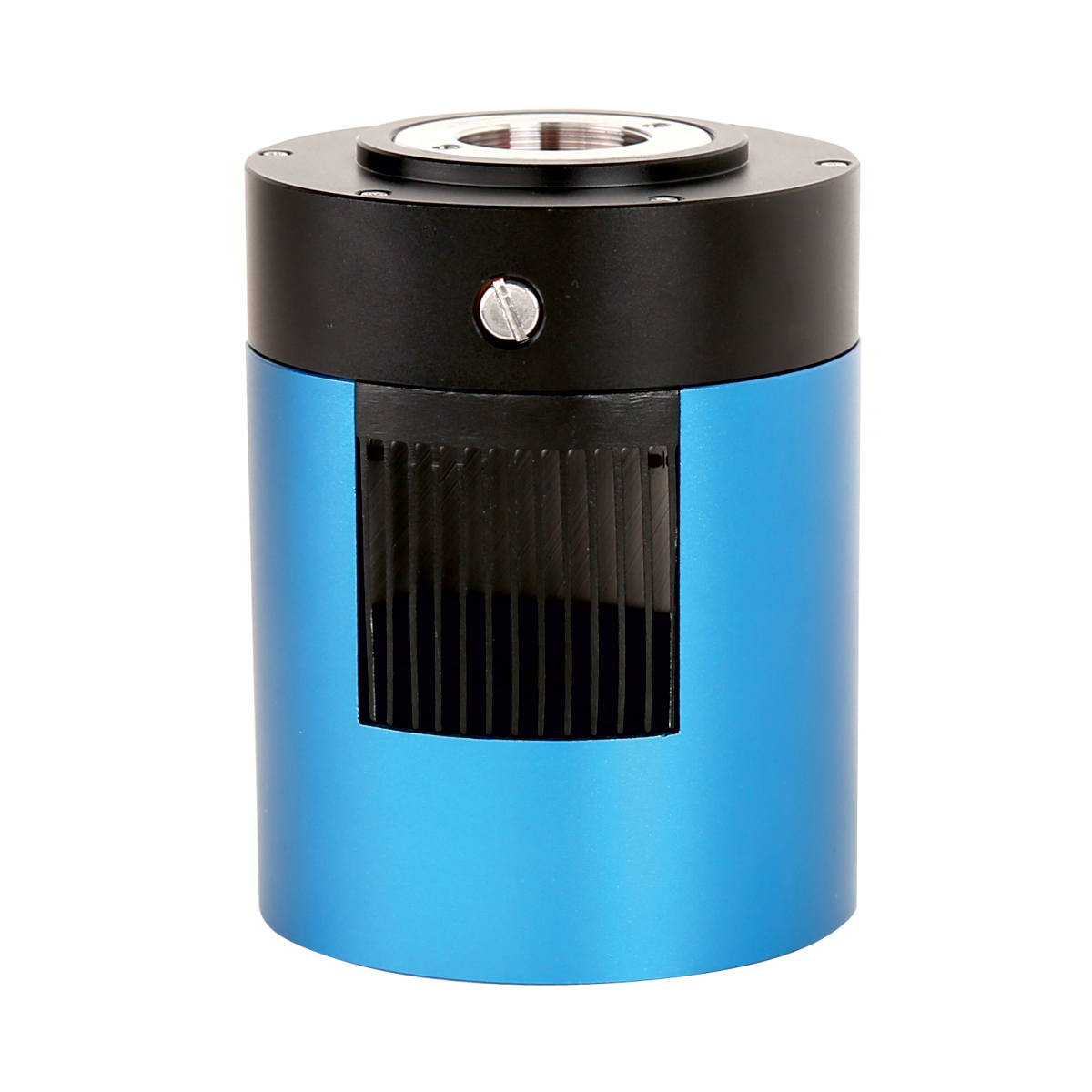

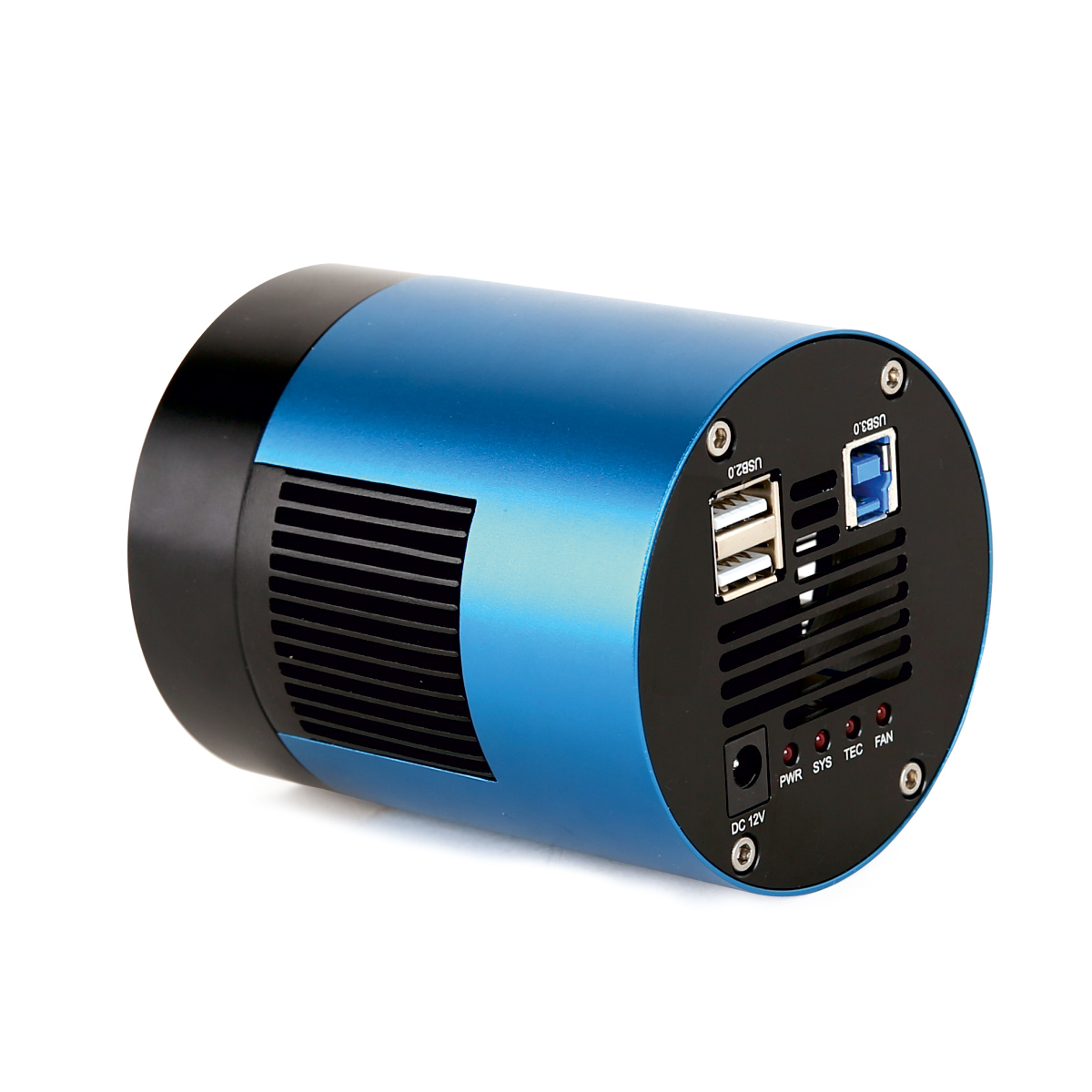

Cooled C-mount USB3.0 CMOS Camera
STC5IB series cameras have adopted SONY Exmor CMOS sensor as the image-picking device and USB3.0 is used as the transfer interface to increase the frame rate.
With the two-stage peltier cooling sensor chip to -42 degree below ambient temperature. This will greatly increase the signal to noise ratio and decrease the image noise. Smart structure is designed to assure the heat radiation efficiency and avoid the moisture problem. Electric fan is used to increase the heat radiation speed.
STC5IB series cameras come with advanced video & image processing application ImageView; Providing Windows/Linux/OSX multiple platform SDK; Native C/C++, C#/VB.NET, DirectShow, Twain Control API.
The STC5IB series cameras can be widely used in low light environment and microscope fluorescence image capture and analysis, as well as the astronomy deep sky applications|
Model |
Sensor & Size(mm) |
Pixel(μm) |
G Sensitivity Dark Signal |
FPS/Resolution |
Binning |
Exposure |
|
STC5IB-2100C |
21M/IMX269(C) |
3.3 x3.3 |
400mv with 1/30s |
5@5280x3956 6@3952x3952 15@2640x1978 50@1760x1318 100@584x440 |
1x1 1x1 2x2 3x3 9x9 |
0.1ms~3600s |
|
STC5IB-2000C |
20M/IMX183(C) |
2.4 x2.4 |
462mv with 1/30s |
5@5440x3648 10@4096x2160 15@2736x1824 30@1824x1216 |
1x1, |
0.1ms~3600s |
|
STC5IB-2000M |
20M/IMX183(M) |
2.4 x2.4 |
388mv with 1/30s (F8.0) |
17.8@5440x3648 41@4096x2160 51@2736x1824 64@1824x1216 |
1x1, |
0.1ms~3600s |
|
STC5IB-1600C |
16M/MN34230PLJ(C) |
3.8x3.8 |
2413LSB |
6@4640x3506 |
1x1 |
0.15ms~3600s |
|
STC5IB-1600M |
16M/MN34230ALJ(M) |
3.8x3.8 |
2650LSB |
22.5@4648x3506 |
1x1 |
0.15ms~3600s |
|
STC5IB-1030C |
10.3M/IMX294(C) |
4.63 x4.63 |
419mv with 1/30s |
7.5@3704x2778 |
1x1, |
0.15ms~3600s |
|
STC5IB-700C |
7.0M/IMX428(C, G) |
4.5 x4.5 |
2058mv with 1/30s |
12@3200x2200 33@1600x1100 |
1x1 1x1 |
0.1ms~3600s |
|
STC5IB-700M |
7.0M/IMX428(M, G) |
4.5 x4.5 |
3354mv with 1/30s |
51@3200x2200 |
1x1 2x2 |
0.1ms~3600s |
|
STC5IB-170C |
1.7M/IMX432(C, G) |
9.0 x9.0 |
4910mv with 1/30s |
33@1600x1100 |
1x1 |
0.1ms~3600s |
|
STC5IB-170M |
1.7M/IMX432(M, G) |
9.0 x9.0 |
8100mv with 1/30s |
94@1600x1100 |
1x1 |
0.1ms~3600s |
|
Other Specification for STC5IB Cameras |
|
|
Spectral Range |
380-650nm (with IR-cut Filter) |
|
White Balance |
ROI White Balance/ Manual Temp Tint Adjustment/NA for Monochromatic Sensor |
|
Color Technique |
Ultra-FineTM Color Engine/NA for Monochromatic Sensor |
|
Capture/Control API |
Native C/C++, C#/VB.NET, DirectShow, Twain and Labview |
|
Recording System |
Still Picture and Movie |
|
Cooling System* |
Two-stage TE-cooling System -45 °C below Camera Body Temperature |
|
Operating Environment |
|
|
Operating Temperature (in Centidegree) |
-10~ 50 |
|
Storage Temperature (in Centidegree) |
-20~ 60 |
|
Operating Humidity |
30~80%RH |
|
Storage Humidity |
10~60%RH |
|
Power Supply |
DC 5V over PC USB Port External Power Adapter for Cooling System, DC12V, 3A |
|
Software Environment |
|
|
Operating System |
Microsoft® Windows® XP / Vista / 7 / 8 /10 (32 & 64 bit) OSx(Mac OS X) Linux |
|
PC Requirements |
CPU: Equal to Intel Core2 2.8GHz or Higher |
|
Memory: 2GB or More |
|
|
USB Port: USB3.0 High-speed Port |
|
|
Display: 17” or Larger |
|
|
CD-ROM |
|
Dimension
The STC5IB body, made from tough, alloy with CNC technique, ensures a heavy duty, workhorse solution. The camera is designed with a high quality IR-CUT or AR to block the IR light or protect the camera sensor. The fan‘s vibration is minimized to the low level to eliminate the vibration caused imaging blur. This design ensures a rugged, robust solution with an increased lifespan when compared to the other industrial camera solutions.
