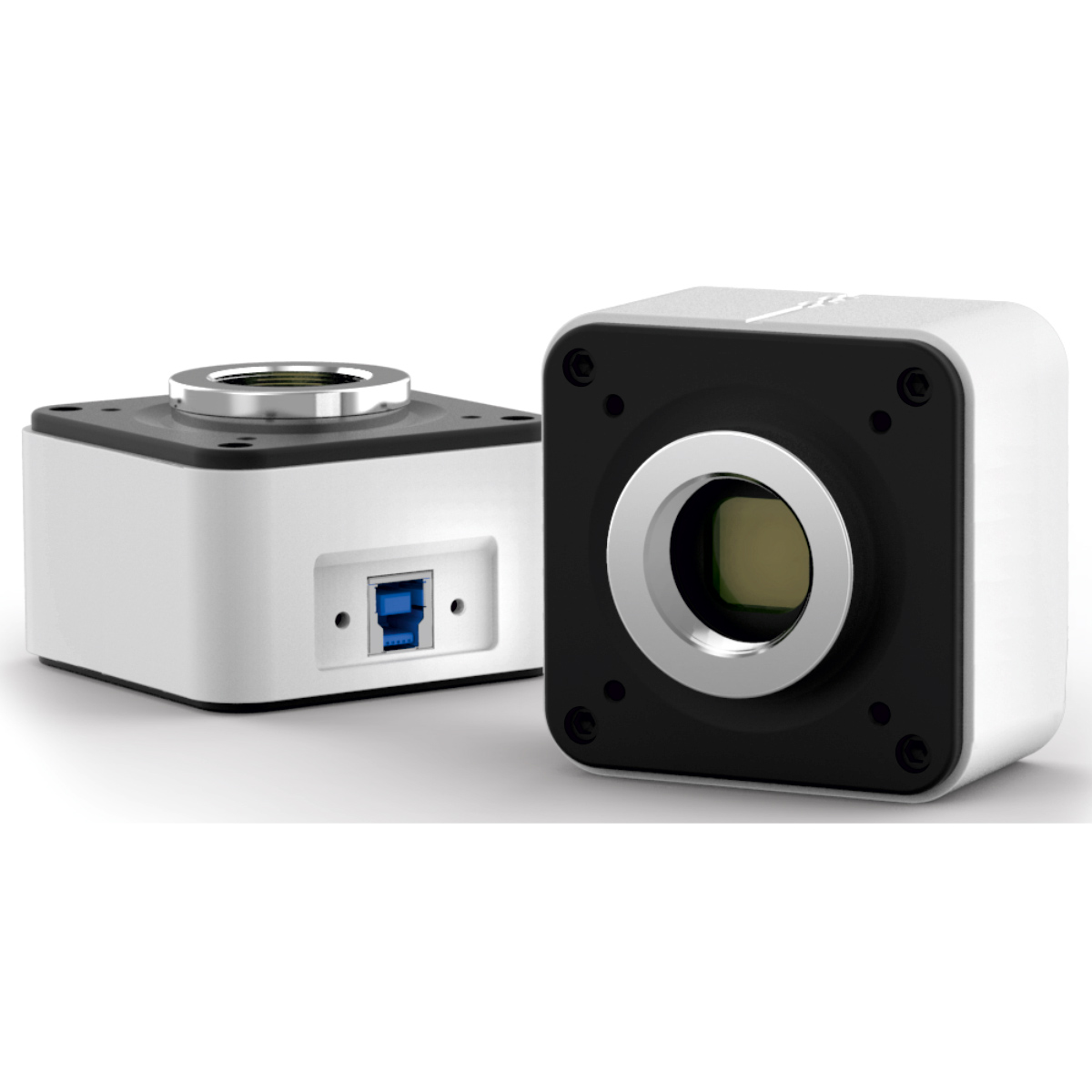

C-mount CMOS Color Digital Camera

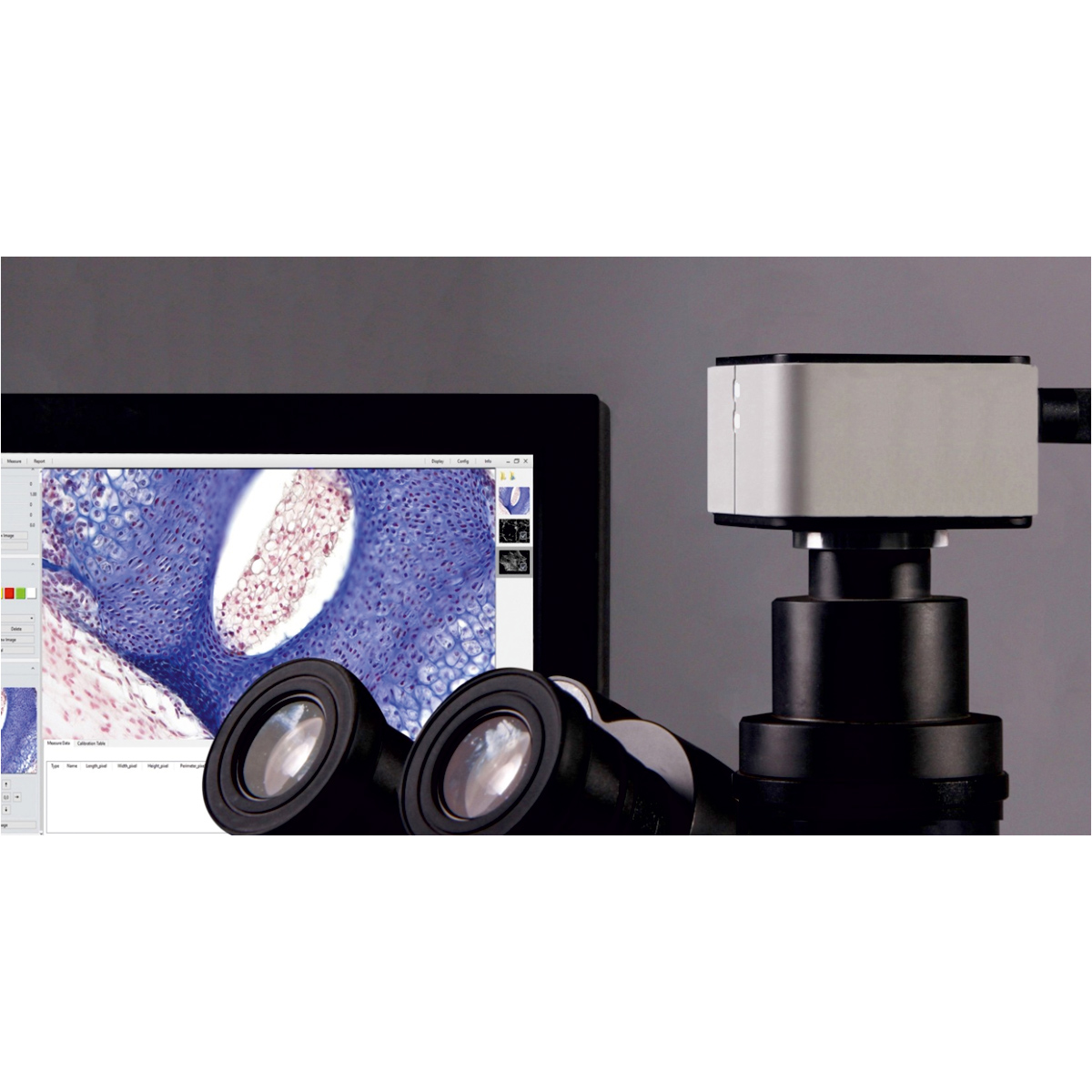

STC5H series USB3.0 digital cameras use Sony sensor, the software has real-time image stitching & depth-of-field fusion function, STC5H-500C has global shutter, STC5H-2000C has 1-inch sensor. The STC5H series cameras can be widely used with bright field, dark field, polarizing, fluorescent microscopes and normal microscope image capture and analysis with high frame rate.
|
Model |
STC5H-500C |
STC5H-600C |
STC5H-2000C |
|
Shutter Mode |
Global |
Rolling |
Rolling |
|
Sensor Model |
IMX264LQR-C |
IMX178LQJ-C |
IMX183CQJ-J |
|
Sensor Type |
CMOS 2/3" Color |
CMOS 1/1.8" Color |
CMOS 1" Color |
|
Pixel Size |
3.45x3.45(μm) |
2.4x2.4(μm) |
2.4x2.4(μm) |
|
Resolution |
2448(H)x2048(V) |
3072(H)x2048(V) |
5472(H)x3648(V) |
|
Frame Rate |
35fps(2448x2048) 35fps(1224x1024 2x2bin) 88fps(1224x1024) |
41fps(3072x2048) 41fps(1536x1024 2x2bin) |
15fps(5472x3648) 53fps(2736x1824 2x2bin) 67fps(1824x1216 3x3bin) |
|
Color Temperature |
2000-15000K |
||
|
Picture Format |
JPG/PNG/TIFF |
||
|
Interface |
Data Interface: USB3.0, Optical Interface: Standard C-Mount |
||
|
Multiple Cameras |
Supports 4 Cameras Simultaneously in SDK |
||
|
PC Software |
Capture V2.0 |
||
|
Operating System |
Windows is supported and Linux/Mac is under development |
||
|
PC Configuration |
CPU: Intel Core i5 or better(Quad or more Core); RAM: 8G or more, OS: Windows 7/8/10 64bit |
||
|
Size & Weight |
Size: 68x68x46mm Weight: 330g |
||
