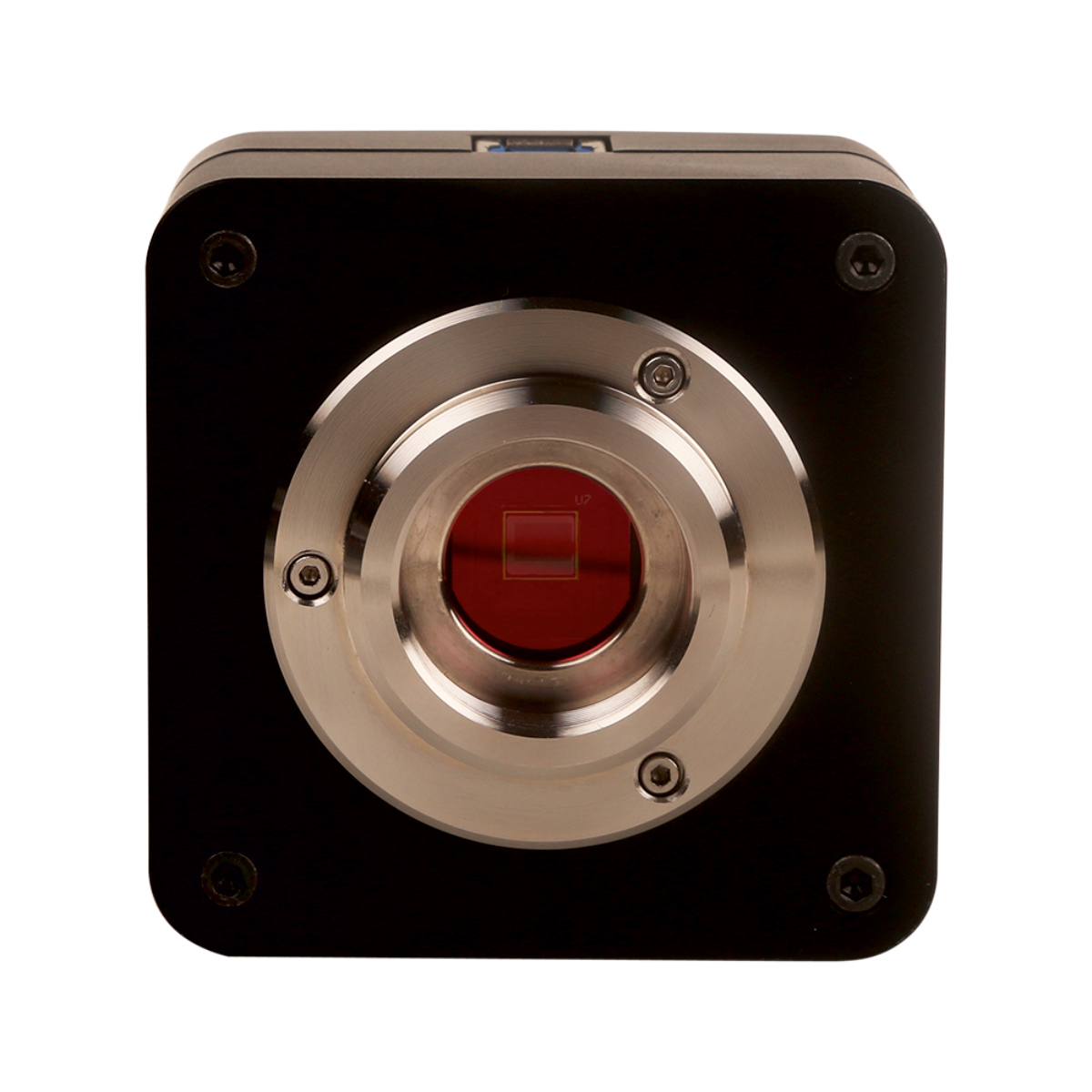

C-mount CMOS Color Digital Camera
.jpg)

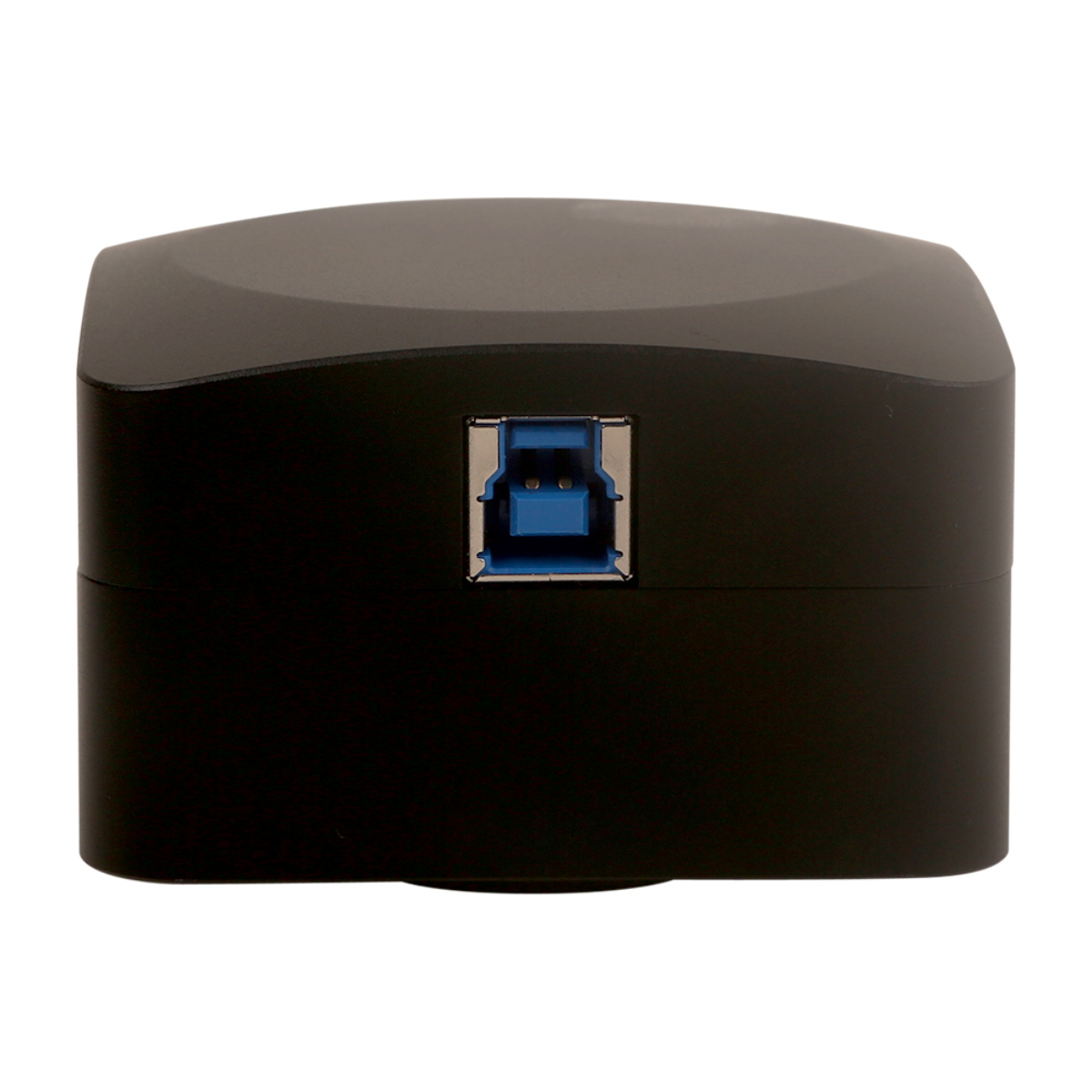

STC5F series USB3.0 digital cameras adopt SONY Exmor CMOS sensor as the image-picking device and USB3.0 is used as the transfer interface.
STC5F series cameras hardware resolutions range from 1.5MP to 21MP and come with the integrated CNC aluminum alloy compact housing.
STC5F series cameras integrated with 12 bit Ultra-fineTM Hardware Image Signal Processor Video Pipline(Ultra-fineTM HISPVP) for Demosaic, Adjustments, Automatic Exposition, Gain Adjustment, One Push White Balance, Chrominance Adjustment, Saturation Adjustment, Gamma Correction, Luminance Adjustment, Contrast Adjustment, Bayer and finally form RAW data for 8/12 bit out. This will move the heavy burden of the processing from the PC to the Ultra-fineTM HISPVP and greatly accelerating the processing speed.
STC5F series cameras come with advanced video & image processing application ImageView; Providing Windows/Linux/ OSX multiple platforms SDK; Native C/C++, C#/VB.NET, DirectShow, Twain Control API;
The STC5F series cameras can be widely used in bright field, dark field, fluorescent light environment and normal microscope image capture and analysis with higher frame rate.
|
Order Code |
Sensor & Size(mm) |
Pixel Size(μm) |
G Sensitivity Dark Signal |
FPS/Resolution |
Binning |
Exposure |
|
STC5F-2100C |
21M/IMX269 (C) |
3.3 x3.3 |
399mv with 1/30s |
17@5280x3954 17@3952x3952 56@2640x1976 67@1760x1316 192@584x438 |
1x1 1x1 2x2 3x3 9x9 |
0.1ms~15s |
|
STC5F-2000C |
20M/IMX183(C) |
2.4 x2.4 |
462mv with 1/30s |
15@5440x3648 50@2736x1824 60@1824x1216 |
1x1 3x3 |
0.1ms~15s |
|
STC5F-1800C |
18M/SONY Special(C) |
1.2 x1.2 |
130mv with 1/30s |
17@4880x3720 40@2448x1836 50@1728x1296 |
1x1 2x2 3x3 |
0.1ms~15s |
|
STC5F-1560C |
15.6M/SONY Special (C) |
3.3 x3.3 |
399mv with 1/30s |
17@3952x3952 56@1976x1976 67@1316x1316 |
1x1 2x2 3x3 |
0.1ms~15s |
|
STC5F-1230C |
12.3M/IMX304(C, GS) 1.1”(14.13x10.35) |
3.45x3.45 |
1146mv with 1/30s |
23.4@4096x3000 46.3@2048x1500 |
1x1 1x1 |
0.244ms~15s |
|
STC5F-1200C |
12M/IMX226(C) |
1.85x1.85 |
280mv with 1/30s |
25@4000x3000 |
1x1 2x2 |
0.1ms~15s |
|
STC5F-900C |
9.0M/IMX305(C, GS) |
3.45x3.45 |
1146mv with 1/30s |
34@4096x2160 |
1x1 1x1 |
0.1ms~15s |
|
STC5F-830C |
8.3M/IMX274(C) 1/2.5”(6.22x3.50) |
1.62x1.62 |
236mv with 1/30s |
32@3840x2160 65@1920x1080 |
1x1 2x2 |
0.244ms~15s |
|
STC5F-830BC |
8.3M/IMX334(C) 1/1.8”(7.68x4.32) |
2.0x2.0 |
505mv with 1/30s |
35@3840x2160 60@1920x1080 |
1x1 2x2 |
0.02ms~15s |
|
STC5F-830CC |
8.3M/IMX485(C) 1/1.2”(11.14x6.26) |
2.9x2.9 |
2188mv with 1/30s 0.15mv with 1/30s |
45@3840x2160 70@1920x1080 |
1x1 2x2 |
0.02ms~15s |
|
STC5F-630C |
6.3M/IMX178(C) |
2.4x2.4 |
425mv with 1/30s |
30@3072 x2048 |
1x1 2x2 |
0.1ms~15s |
|
STC5F-630BC |
6.3M/IMX178(C) |
2.4x2.4 |
425mv with 1/30s |
59@3072 x2048 |
1x1 2x2 |
0.02ms~15s |
|
STC5F-500C |
5.0M/IMX264(C, GS) |
3.45x3.45 |
1146mv with 1/30s |
35@2448x2048 50@1224x1024 |
1x1 1x1 |
0.1ms~15s |
|
STC5F-310C |
3.1M/IMX123(C) |
2.5x2.5 |
600mv with 1/30s |
50@2048x1536 50@1920x1080 |
1x1 |
0.1ms~15s |
|
STC5F-310BC |
3.1M/IMX265(C, GS) |
3.45x3.45 |
1146mv with 1/30s |
53@2048x1536 85@1024x768 |
1x1 1x1 |
0.1ms~15s |
|
STC5F-200C |
2M/IMX385(C) |
3.75x3.75 |
2350mv with 1/30s |
125@1920x1080 |
1x1 |
0.1ms~15s |
|
STC5F-150C |
1.5M/IMX273(C, GS) |
3.45x3.45 |
1146mv with 1/30s |
164@1440x1080 320@720x540 |
1x1 2x2 |
0.1ms~15s |
|
Other Specification for STC5F Series Cameras |
|
|
Spectral Range |
380-650nm (with IR-cut Filter) |
|
White Balance |
ROI White Balance/ Manual Temp Tint Adjustment/NA for Monochromatic Sensor |
|
Color Technique |
Ultra-fineTM HISPVP /NA for Monochromatic Sensor |
|
Capture/Control API |
Native C/C++, C# /VB.Net,, DirectShow, Twain and Labview |
|
Recording System |
Still Picture and Movie |
|
Cooling System* |
Natural |
|
Operating Environment |
|
|
Operating Temperature (in Centigrade) |
-10~ 50 |
|
Storage Temperature (in Centigrade) |
-20~ 60 |
|
Operating Humidity |
30~80%RH |
|
Storage Humidity |
10~60%RH |
|
Power Supply |
DC 5V over PC USB Port |
|
Software Environment |
|
|
Operating System |
Microsoft® Windows® XP / Vista / 7 / 8 /10 (32 & 64 bit) OSx(Mac OS X) Linux |
|
PC Requirements |
CPU: Equal to Intel Core2 2.8GHz or Higher |
|
Memory: 2GB or More |
|
|
USB Port: USB3.0 High-speed Port |
|
|
Display: 17” or Larger |
|
|
CD-ROM |
|
Dimension
The STC5F body, made from tough, CNC aluminum alloy, ensures a heavy duty, workhouse solution. The camera is designed with a high quality IR-CUT to protect the camera sensor. No moving parts included. These measures ensure a rugged, robust solution with an increased lifespan when compared to other industrial camera solutions
