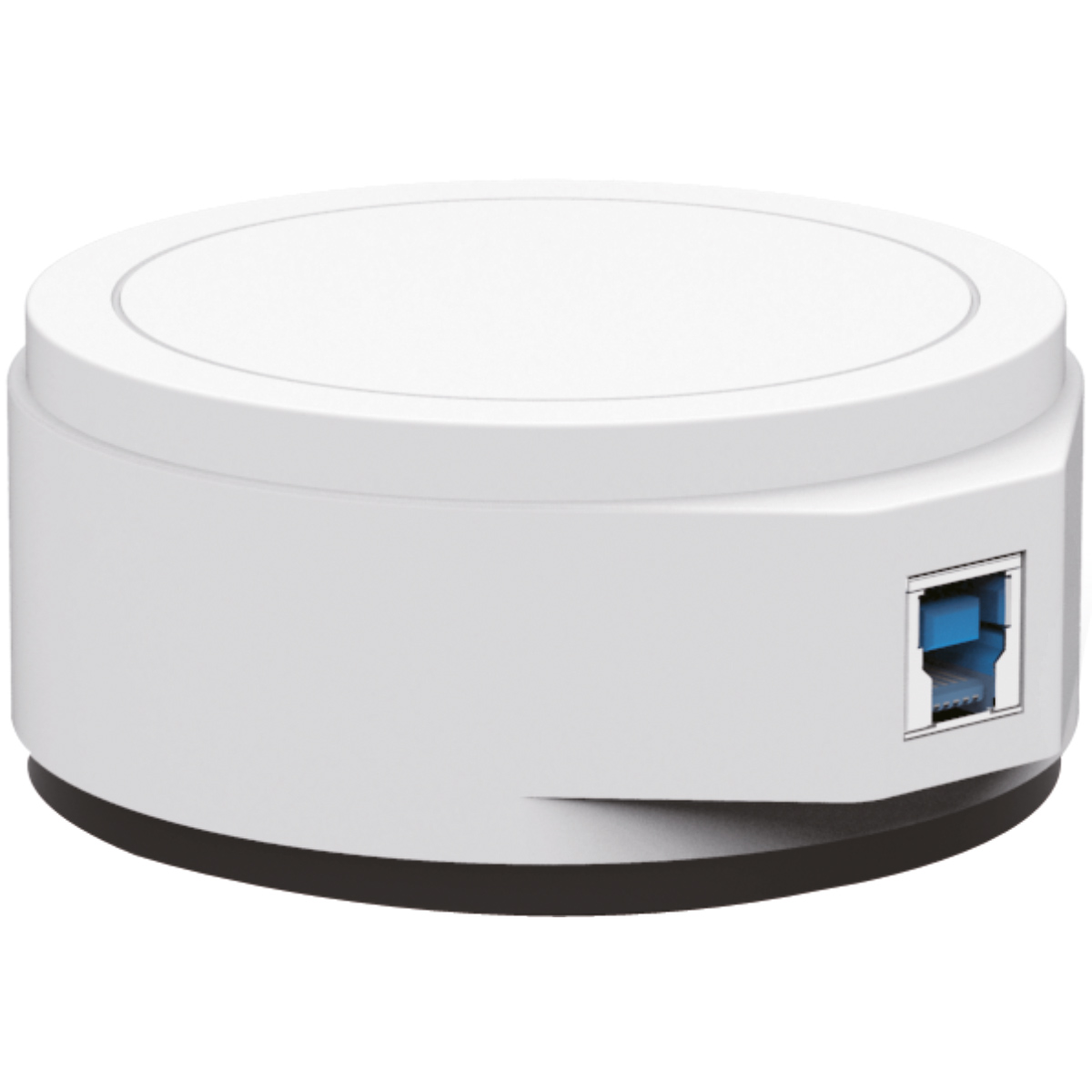

C-mount CMOS Color Digital Camera
STC5C Series USB3.0 digital cameras adopt the latest USB3.0 technology, the speed is much faster than USB2.0 digital cameras. They are widely used in academic and medical fields for precision and high resolution microscope image capturing and processing.
Compatible with Windows 2000/ XP/ Vista/Win7/Win 8/Win 10, 32bit&64bit, Mac operation system;
0.45X adapters and micrometers are optional.
|
Model |
STC5C-300C |
STC5C-500C |
STC5C-1600C |
|
Sensor |
CMOS |
Micron MT9P031 |
Panasonic MN34120 |
|
Color/Monochrome |
Color |
Color |
Color |
|
Sensor Size |
1/2.7 inch |
1/2.5 inch |
1/2.33 inch |
|
Image Processor |
Built-in ISP image processor |
Built-in ISP image processor |
Built-in image processor |
|
Image Transmission Control |
—— |
—— |
High-speed FPGA+high speed DDR |
|
Color Temperature |
—— |
—— |
1900K-8000K |
|
Pixel Size |
3.0μm × 3.0μm |
2.2μm × 2.2μm |
1.335μm × 1.335μm |
|
Effective Pixels |
2.0MP |
5.0MP |
16.0MP |
|
Max. Resolution |
2304H × 1296V |
2584H × 1936V |
4608H × 3456V |
|
Scan Mode |
Progressive |
Progressive |
Progressive |
|
Shutter |
Rolling shutter |
Rolling shutter |
Rolling shutter |
|
Frame Rate |
8fps @ 3MP ( 2304 × 1296 ) |
14fps @ 2584 × 1936 |
5fps @ 16MP ( 4608 × 3456 ) |
|
30fps @ 2MP ( 1920 × 1080 ) |
23fps @ 2040 × 1528 |
25fps @ 4MP ( 2304 × 1728 ) |
|
|
|
30fps @1592 × 1192 |
30fps @ 1600 × 1200 |
|
|
|
35fps @1016 × 760 |
30fps @ 1280 × 960 |
|
|
Color Depth |
24 bit |
24 bit |
24 bit |
|
A/D |
8 bit |
8 bit |
8 bit |
|
Exposure Control |
Manual/Auto |
Manual/Auto |
Manual/Auto |
|
Exposure Time(s) |
0.001-0.033s |
0.001-1s |
0.001-1s |
|
White Balance |
Manual/Auto |
Manual/Auto |
Manual/Auto |
|
Data Interface |
USB3.0/5Gb/s |
USB3.0/5Gb/s |
USB3.0/5Gb/s |
|
Operating system |
Windows 2000/XP/ Vista/Win7/Win8/Win10, 32bit & 64bit |
Windows 2000/XP/ Vista/Win7/Win8/Win10, 32bit & 64bit, Mac/Linux |
|
|
Power Supply |
USB3.0 Power Supply, 300～500mA@5V |
||
|
Operating Temperature |
0-60°C |
||
|
Operating Humidity |
45%-85% |
||
|
Storage Temperature |
-20-70°C |
||
|
Optical Port |
Standard C-mount |
||
