C-mount CCD Color Digital Camera
STC6A series USB3.0 CCD digital camera adopt Sony ExView HAD CCD sensor as the image capture device. Sony ExView HAD CCD is a CCD that drastically improves light efficiency by including near infrared light region as a basic structure of HAD (Hole-Accumulation-Diode) sensor. USB3.0 is used as the data transfer interface.
STC6A series cameras” hardware resolutions range from 2.8M to 6M and come with the integrated CNC aluminum alloy compact housing.
STC6A series cameras come with advanced video & image processing application ImageView; Providing Windows/Linux/ OSX multiple platforms SDK; Native C/C++, C#/VB.NET, DirectShow, Twain Control API.
The STC6A series cameras can be widely used in bright field, dark field, fluorescent light environment and microscope image capture and analysis with higher frame rate|
Order Code |
Sensor & Size(mm) |
Pixel(μm) |
G Sensitivity Dark Signal |
FPS/Resolution |
Binning |
Exposure |
|
STC6A-1200C |
12M/ICX834AQG(C) |
3.1x3.1 |
420mv with 1/30s 15.2mv with 1/30s |
3.6@4248x2836 |
1x1, 2x2 |
0.06ms~1000s |
|
STC6A-1200M |
12M/ICX834ALG(M) |
3.1x3.1 |
420mv with 1/30s 12mv with 1/30s (F8.0) |
3.6@4248x2836 |
1x1, 2x2 |
0.06ms~1000s |
|
STC6A-900C |
9.0M/ICX814AQG(C) |
3.69x3.69 |
580mv with 1/30s 12mv with 1/30s |
4.4@3388x2712 |
1x1, 2x2 |
0.06ms~1000s |
|
STC6A-900M |
9.0M/ICX814ALG(M) |
3.69x3.69 |
660mv with 1/30s 12mv with 1/30s (F8.0) |
4.4@3388x2712 |
1x1, 2x2 |
0.06ms~1000s |
|
STC6A-600C |
6.0M/ICX694AQG(C) |
4.54x4.54 |
880mv with 1/30s 8mv with 1/30s |
7.5@2748x2200 |
1x1 |
0.06ms~1000s |
|
STC6A-600M |
6.0M/ICX694ALG(M) |
4.54x4.54 |
1000mv with 1/30s 8mv with 1/30s |
7.5@2748x2200 |
1x1 |
0.06ms~1000s |
|
STC6A-280C |
2.8M/ICX674AQG(C) |
4.54x4.54 |
800mv with 1/30s |
15@1938x1460 18@1930x1092 |
1x1 |
0.05ms~1000s |
|
STC6A-280M |
2.8M/ICX674ALG(M) |
4.54x4.54 |
950mv with 1/30s |
15@1938x1460 18@1930x1092 |
1x1 |
0.05ms~1000s |
|
STC6A-140C |
1.4M/ICX825AQA(C) |
6.45x6.45 |
2000mv with 1/30s |
25@1376x1040 |
1x1 |
0.07ms~1000s |
|
STC6A-140M |
1.4M/ICX825ALA(M) |
6.45x6.45 |
2000mv with 1/30s 4.8mv with 1/30s |
25@1376x1040 |
1x1 |
0.07ms~1000s |
|
Other Specification for STC6A Camera |
|
|
Spectral Range |
380-650nm (with IR-cut Filter) |
|
White Balance |
ROI White Balance/ Manual Temp Tint Adjustment/NA for Monochromatic Sensor |
|
Color Technique |
Ultra-FineTM Color Engine/NA for Monochromatic Sensor |
|
Capture/Control API |
Native C/C++, C# /VB.Net, DirectShow, Twain |
|
Recording System |
Still Picture and Movie |
|
Cooling System |
Natural |
|
Operating Environment |
|
|
Operating Temperature (in Centigrade) |
-10~ 50 |
|
Storage Temperature (in Centigrade) |
-20~ 60 |
|
Operating Humidity |
30~80%RH |
|
Storage Humidity |
10~60%RH |
|
Power Supply |
DC 5V over PC USB Port |
|
Software Environment |
|
|
Operating System |
Microsoft® Windows® XP / Vista / 7 / 8 /10 (32 & 64 bit) OSx(Mac OS X) Linux |
|
PC Requirements |
CPU: Equal to Intel Core2 2.8GHz or Higher |
|
Memory: 2GB or More |
|
|
USB Port: USB3.0 High-speed Port |
|
|
Display: 17” or Larger |
|
|
CD-ROM |
|
Dimension of STC6A

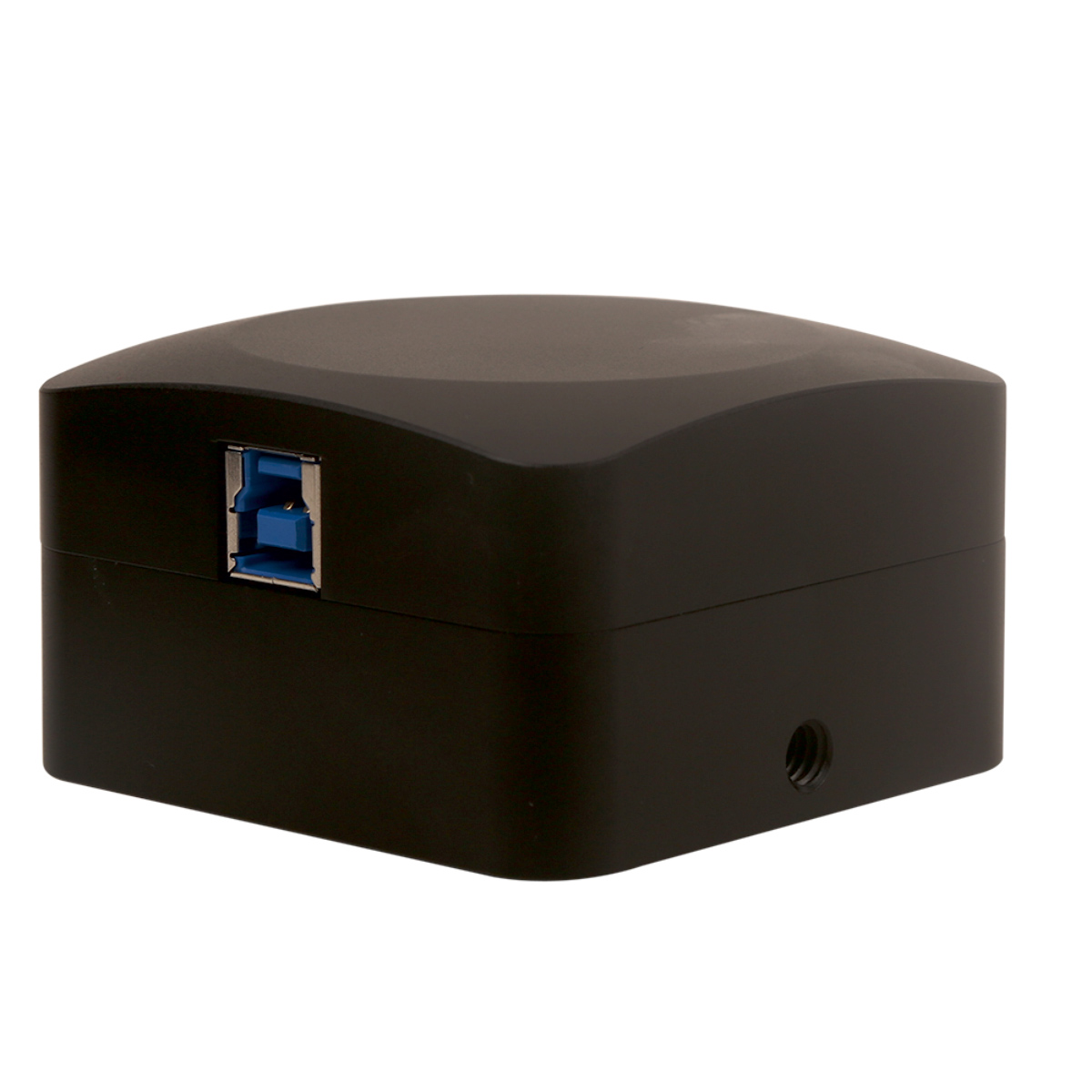

The STC6A body, made from tough, CNC aluminum alloy, ensures a heavy duty, workhorse solution. The camera is designed with a high quality IR-CUT to protect the camera sensor. No moving parts included. These measures ensure a rugged, robust solution with an increased lifespan when compared to other industrial camera solutions.
