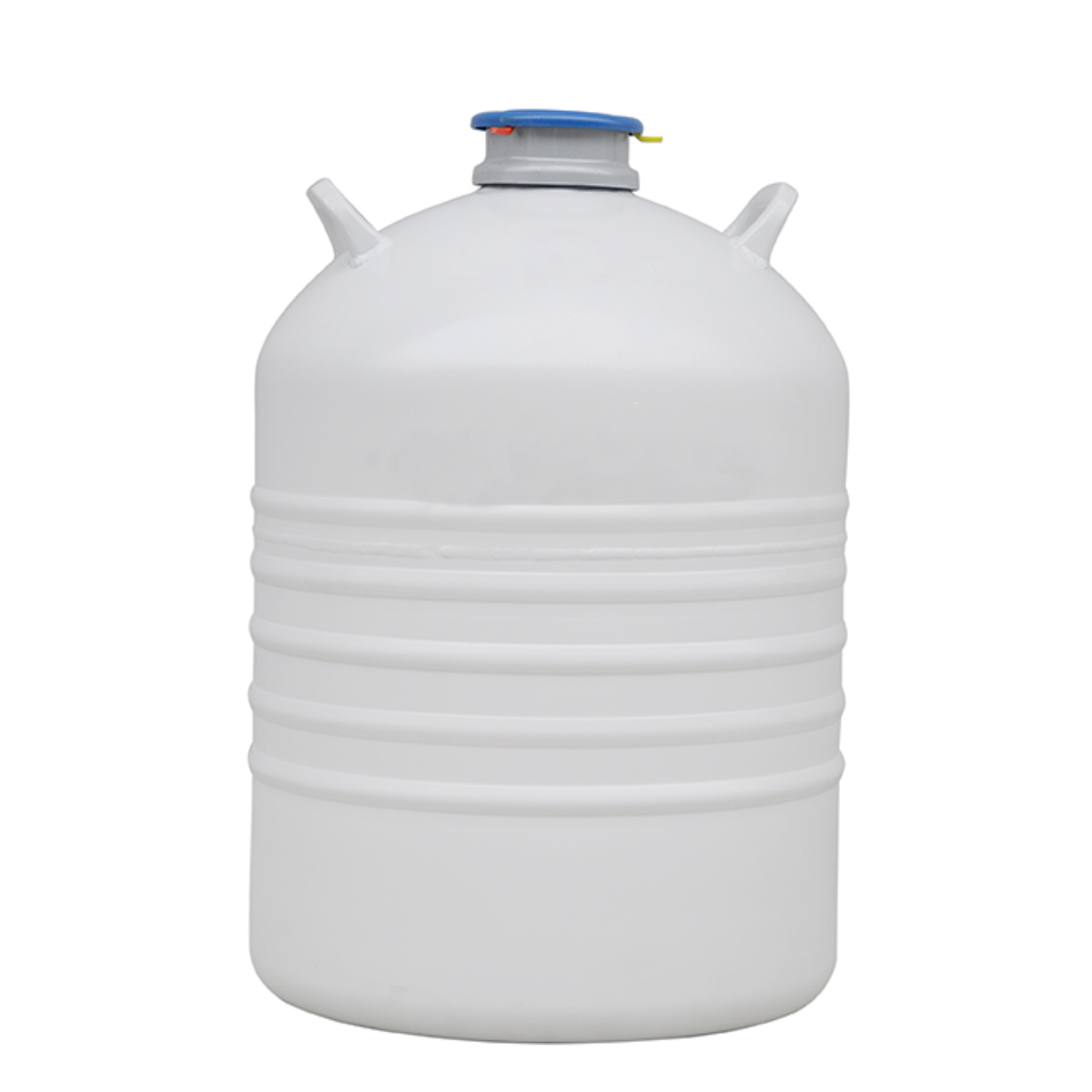

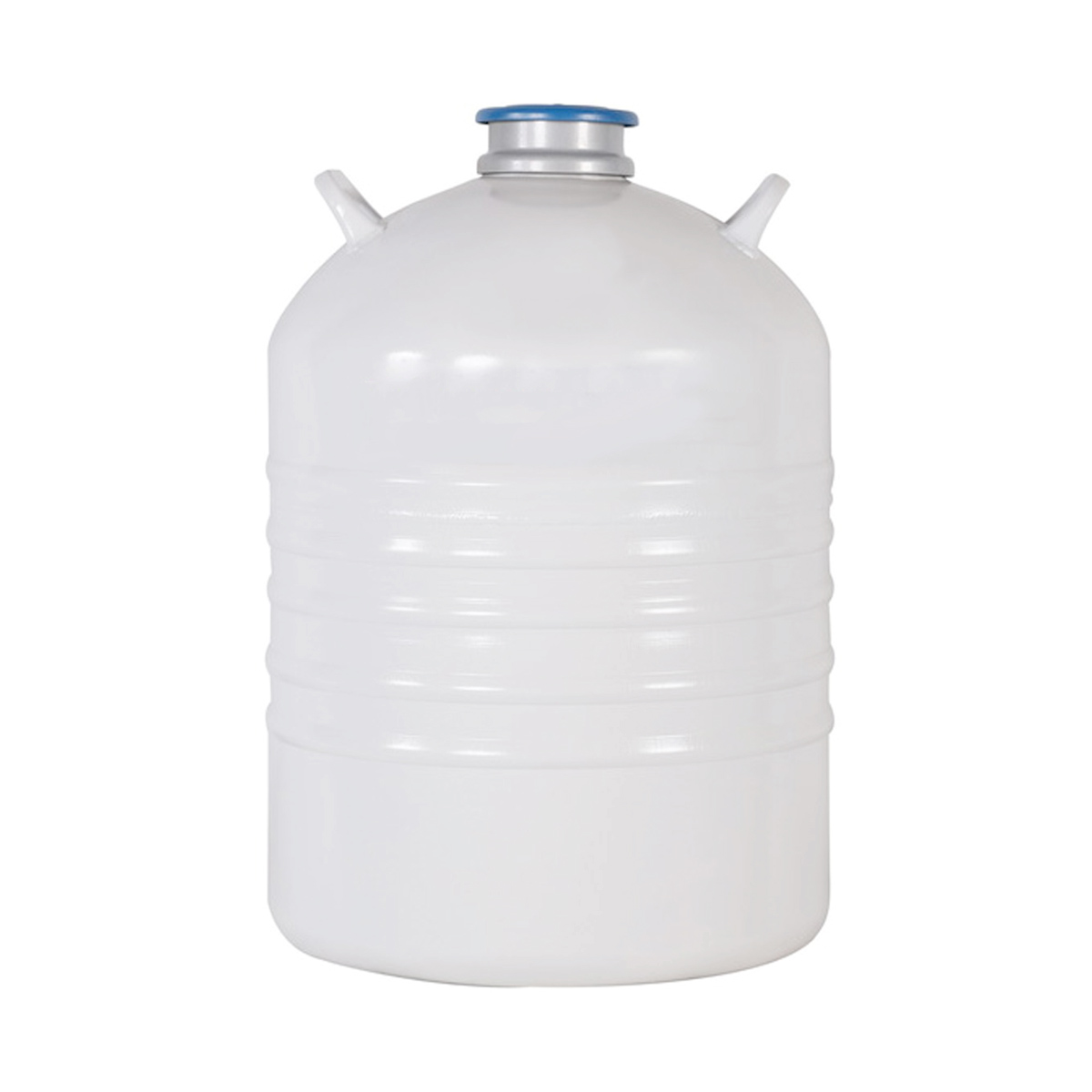

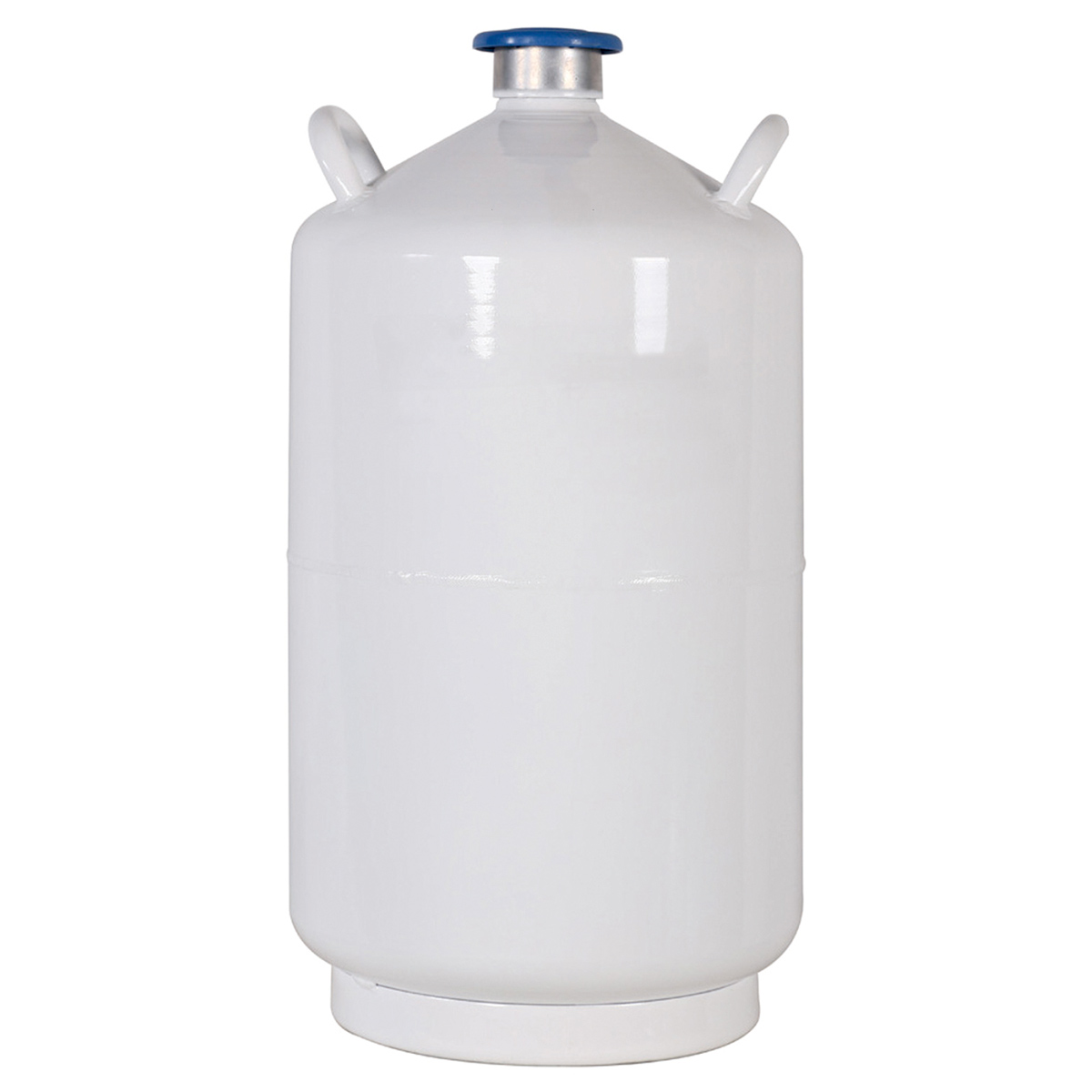

Liquid Nitrogen Cylinders
STC Series liquid nitrogen containers are economical small and medium size liquid
nitrogen containers for long term static state storage. STC Series include two types,
large capacity and long shelf life. STC Series are made of high strength and lightweight aluminum alloy. There is multilayer superior performance thermal insulation
inside.
Various accessories are optional. Mainly apply to animal husbandry and laboratories.
|
Model |
STC 2/35 |
STC 3/50 |
STC 6/50 |
STC 10/50 |
STC 15/50 |
|
Number of Canisters |
3 |
6 |
6 |
6 |
6 |
|
Number of Straws (0.5ml) |
165 |
792 |
792 |
792 |
792 |
|
Number of Straws (0.25ml) |
330 |
1788 |
1788 |
1788 |
1788 |
|
Liquid N2 Capacity(L) |
2 |
3 |
6 |
10 |
15 |
|
Static Evaporation(L/D) |
0.08 |
0.12 |
0.12 |
0.12 |
0.11 |
|
Static Holdover me(Day) |
24 |
26 |
52 |
86 |
134 |
|
Neck Diameter (mm) |
35 |
50 |
50 |
50 |
50 |
|
Overal Height(mm) |
428 |
435 |
482 |
552 |
591 |
|
External Diameter (mm) |
204 |
223 |
300 |
300 |
394 |
|
Canister Diameter(mm) |
25 |
38 |
38 |
38 |
38 |
|
Canister Height (mm) |
120 |
120 |
120 |
120 |
120 |
|
Weight Empty (Kg) |
2.6 |
3.1 |
4.8 |
5.9 |
8.5 |
|
Weight Full (Kg) |
4.2 |
5.6 |
9.7 |
14.1 |
18.2 |
|
Model |
STC 13/50L |
STC 20/50 STC 20/50L |
STC-20B/50 |
STC 25/50 STC 25/50L |
STC 30/50 STC 30/50L |
|
|
No. of Canister |
6 |
6 |
6 |
6 |
6 |
|
|
No. of Straws (1-level Canister) |
0.5ml |
___ |
792 |
792 |
792 |
792 |
|
0.25ml |
___ |
1288 |
1288 |
1288 |
1288 |
|
|
No. of Straws (2-level Canister) |
0.5ml |
1284 |
1284 |
1284 |
1284 |
1284 |
|
0.25ml |
2832 |
2832 |
2832 |
2832 |
2832 |
|
|
Liquid N2 Capacity (L) |
13 |
20 |
20 |
25 |
31.5 |
|
|
Static Evaporation (L/day) |
0.12 |
0.12 |
0.20 |
0.14 |
0.12 |
|
|
Static Holdover me(Day) |
108 |
166 |
101 |
180 |
254 |
|
|
Neck Opening (mm) |
50 |
50 |
50 |
50 |
50 |
|
|
Overal Height (mm) |
623 |
672 |
672 |
700 |
705 |
|
|
External Diameter (mm) |
310 |
394 |
394 |
394 |
462 |
|
|
Canister External Diameter (mm) |
38 |
38 |
38 |
38 |
38 |
|
|
Canister Height (mm) |
276 |
120/276 |
120/276 |
120/276 |
120/276 |
|
|
Weight Empty (kg) |
6.3 |
9.5 |
9.5 |
10.7 |
12.9 |
|
|
Weight Liquid Full (kg) |
16.7 |
23.3 |
23.3 |
30.7 |
38.1 |
|
|
Model |
STC 30B/50 |
STC 30/80L |
STC 30/125 |
STC 35/50 STC 35/50L |
STC 35B/80 |
STC 35/80L |
|
|
No. of Canister |
6 |
6 |
6 |
6 |
6 |
6 |
|
|
No. of Straws (1-level Canister) |
0.5ml |
792 |
—— |
—— |
792 |
2244 |
—— |
|
0.25ml |
1788 |
—— |
—— |
1788 |
5022 |
—— |
|
|
No. of Straws (2-level Canister) |
0.5ml |
1284 |
3624 |
9048 |
1284 |
3624 |
3624 |
|
0.25ml |
2832 |
8460 |
19944 |
2832 |
8460 |
8460 |
|
|
Liquid N2 Capacity (L) |
31.5 |
31.5 |
31.5 |
35.5 |
35.5 |
35.5 |
|
|
Static Evaporation (L/day) |
0.2 |
0.21 |
0.35 |
0.12 |
0.30 |
0.12 |
|
|
Static Holdover me(Day) |
159 |
147 |
90 |
286 |
119 |
286 |
|
|
Neck Opening (mm) |
50 |
80 |
125 |
50 |
80 |
50 |
|
|
Overal Height (mm) |
705 |
710 |
705 |
750 |
753 |
750 |
|
|
External Diameter (mm) |
462 |
462 |
462 |
462 |
462 |
462 |
|
|
Canister External Diameter (mm) |
38 |
63 |
97 |
38 |
63 |
38 |
|
|
Canister Height (mm) |
120/276 |
120/276 |
120/276 |
120/276 |
120/276 |
120/276 |
|
|
Weight Empty (kg) |
12.9 |
13.1 |
12.9 |
14.2 |
14.5 |
14.2 |
|
|
Weight Liquid Full (kg) |
38.1 |
38.3 |
38.1 |
42.2 |
42.5 |
42.2 |
|
|
Model |
STC 35/125 STC 35/125L |
STC 47/127L |
STC 47/127T STC 47/127TL |
STC 50B/50 STC 50B/50L |
STC 50B/125L |
|
|
No. of Canister |
6 |
6 |
10 |
6 |
6 |
|
|
No. of Straws (1-level Canister) |
0.5ml |
5124 |
----- |
8540 |
792 |
----- |
|
0.25ml |
11640 |
----- |
19920 |
1788 |
----- |
|
|
No. of Straws (2-level Canister) |
0.5ml |
9048 |
9048 |
15080 |
1284 |
9048 |
|
0.25ml |
20760 |
19944 |
33240 |
2832 |
19944 |
|
|
Liquid N2 Capacity (L) |
35.5 |
47 |
47 |
50 |
50 |
|
|
Static Evaporation (L/day) |
0.41 |
0.36 |
0.36 |
0.23 |
0.45 |
|
|
Static Holdover me(Day) |
86 |
130 |
130 |
213 |
110 |
|
|
Neck Opening (mm) |
125 |
127 |
127 |
50 |
125 |
|
|
Overall Height (mm) |
748 |
718 |
718 |
811 |
818 |
|
|
External Diameter (mm) |
462 |
508 |
508 |
462 |
462 |
|
|
Canister External Diameter (mm) |
97 |
104 |
72 |
63 |
97 |
|
|
Canister Height (mm) |
120/276 |
120/276 |
120/276 |
120/276 |
120/276 |
|
|
Weight Empty (kg) |
14.6 |
15 |
15 |
15.2 |
15.4 |
|
|
Weight Liquid Full (kg) |
43.0 |
53.54 |
55.6 |
55.4 |
56.2 |
|
